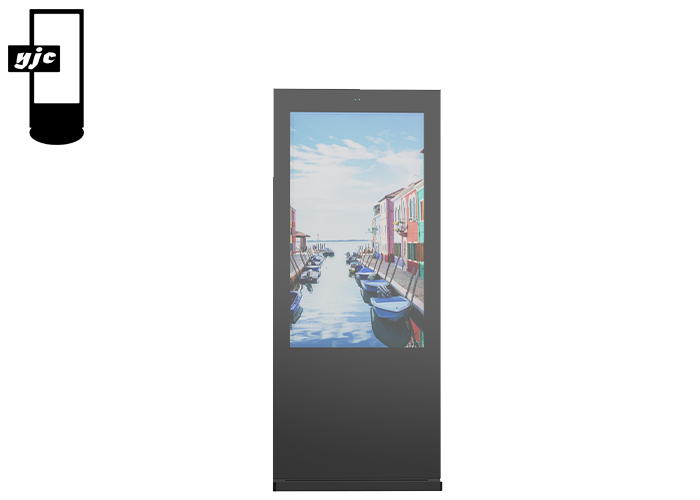

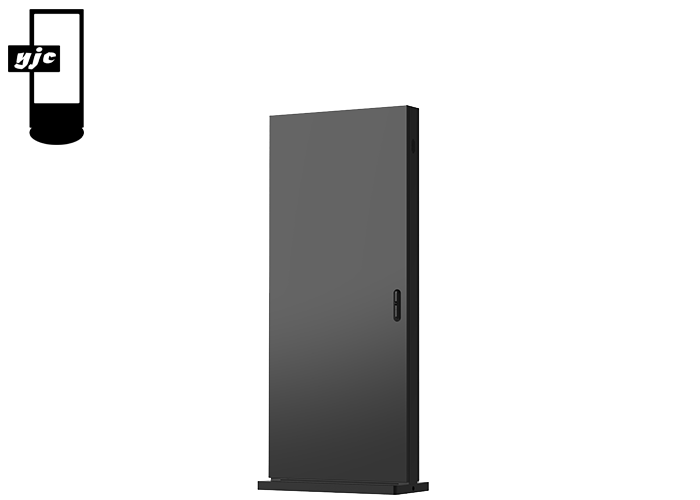

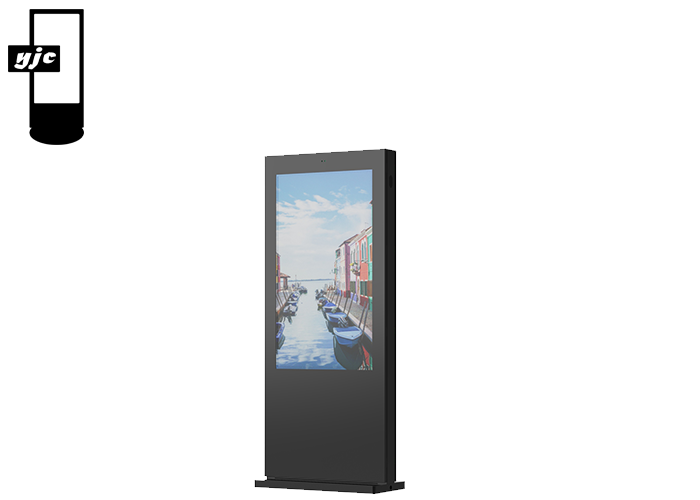

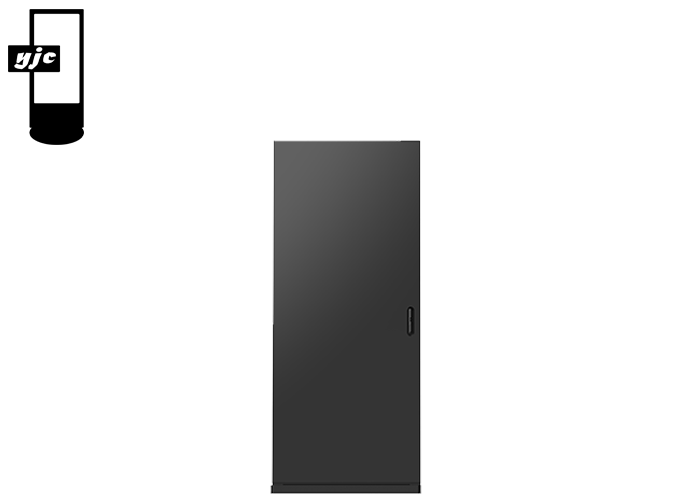

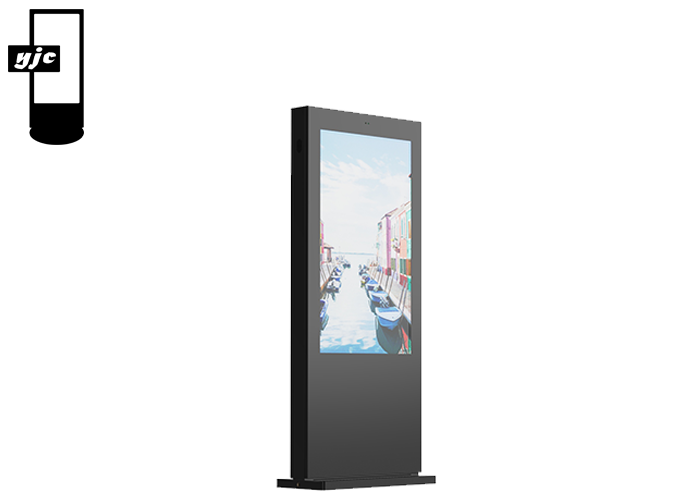

Outdoor Floorstand Kiosk
Outdoor Floorstand Kiosk
Outdoor Floorstand Kiosk is a device specially designed for outdoor environments. It is suitable for parks, scenic spots, commercial plazas and other scenarios.
IP65 protection level and internal intelligent temperature control system allow the equipment to operate stably under severe weather conditions.
The high-brightness display screen remains clearly visible in strong light environments.
Low-power backlight design and brightness sensing module allow it to achieve green operation and reduce energy consumption
The Outdoor Floorstand Kiosk provides a convenient and efficient self-service solution for your business. Strong weather resistance and multifunctional integration make it ideal for outdoor scenes.
IP65 protection level and internal intelligent temperature control system allow the equipment to operate stably under severe weather conditions.
The high-brightness display screen remains clearly visible in strong light environments.
Low-power backlight design and brightness sensing module allow it to achieve green operation and reduce energy consumption
The Outdoor Floorstand Kiosk provides a convenient and efficient self-service solution for your business. Strong weather resistance and multifunctional integration make it ideal for outdoor scenes.
Outdoor Floorstand Kiosk
Panel
| Size | Resolution | Brightness |
|---|---|---|
| 55"（21.5"~98" options） | 1920x1080 | 3,000(cd/m²) |
| Display Area | Contrast | Viewing Angle |
| 1209.6 × 680.4 mm(H×V） | 1200:1 | 89°/89°/89°/89° |
| Operating temperature | Display Color | Aspect Ratio |
| -45℃~105℃ | 16.7M | 16:9 |
OS
| System | CPU | RAM |
|---|---|---|
| Android 10 | RK3399 Hexa-Core 1.8GHz | 4G |
| LAN | Wi-Fi | ROM |
| 10M/100M Ethernet | 802.11b/g/n/ac | 32G |
Touch
| Touch Technology | Touch Points | Touch Life |
|---|---|---|
| PCAP touch | 10 Points | 500 million times |
Power
| Input Voltage | Power | |
|---|---|---|
| AC100V~240V(50Hz/60Hz) | 290W |
