Industrial Grade Touch AIO系列

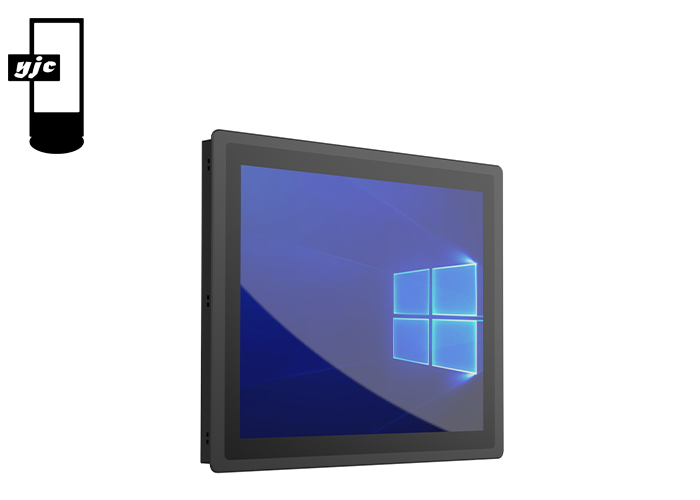

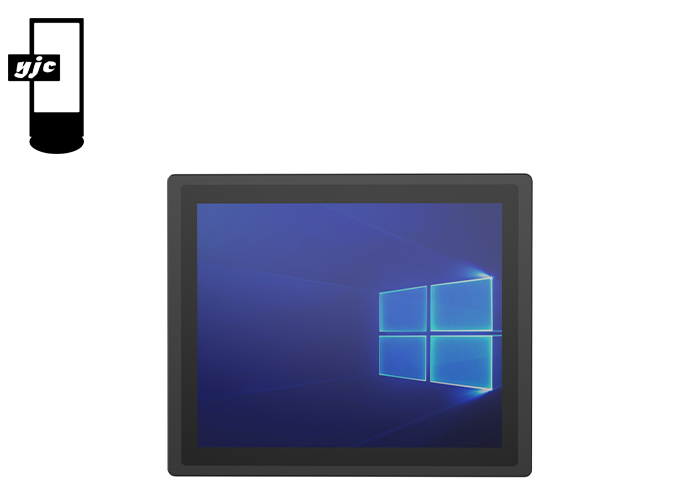

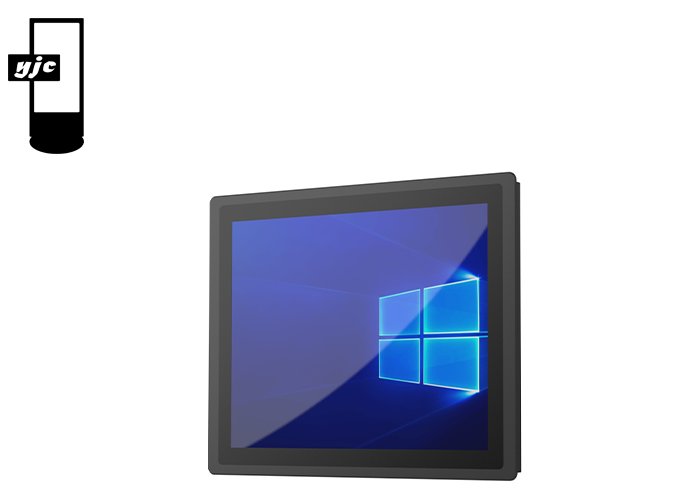

Embedded Touch AIO
Embedded Touch AIO
Embedded Touch AIO is a compact device integrating computing and display functions, which is easy to install and integrate, providing users with a convenient solution.
Features industrial-grade materials and design for harsh environments.
Support multi-touch for fast and accurate operation.
Adopt high-performance processors and memory to ensure stable operation and efficient response.
Support a variety of interfaces and expansion functions, easy to connect and upgrade with other devices.
It can be used in various scenarios such as Kiosk, smart home systems, and public transportation to meet different needs.
Features industrial-grade materials and design for harsh environments.
Support multi-touch for fast and accurate operation.
Adopt high-performance processors and memory to ensure stable operation and efficient response.
Support a variety of interfaces and expansion functions, easy to connect and upgrade with other devices.
It can be used in various scenarios such as Kiosk, smart home systems, and public transportation to meet different needs.
Embedded Touch AIO
Panel
| Size | Resolution | Brightness |
|---|---|---|
| 19"（15.6"~24" options） | 1920x1080 | 450(cd/m²) |
| Display Area | Contrast | Viewing Angle |
| 376.32 × 301.056 mm (H×V) | 1000:1 | 89°/89°/89°/89° |
| Aspect Ratio | Display Color | Operating temperature |
| 4:3 | 16.7M | 0℃~45℃ |
OS
| System | CPU | RAM |
|---|---|---|
| Windows 10 Pro | I5 6400 Quad core 2.7GHz | 16G |
| LAN | Wi-Fi | ROM |
| 100M/1000M Ethernet | 802.11b/g/n/ac | 256G |
Touch
| Touch Technology | Touch Points | Touch Life |
|---|---|---|
| PCAP touch | 10 Points | 500 million times |
Power
| Input Voltage | Power | |
|---|---|---|
| AC100V~240V(50Hz/60Hz) | 58W |
