Digital Signage Totem

Indoor floor-standing signage for retail, reception and public spaces.

Front

  • 32–86″Standard models
  • 400 nitsBrightness
  • IPS · 178°Wide viewing angle
  • Stable baseFreestanding design
  • 24/7Operating hours

Configuration options

Interaction
Non-touch / IR: 32–86″; PCAP: 32–65″
Operating system
Android / Windows
OEM / ODM
Enclosure, branding & hardware

Sample orders from 1 unit 3-year warranty

View terms
View Projects

100% Pre-Shipment Inspection

Burn-in, image quality, touch, ports and appearance.

Floor-Standing Display Specifications

YJCEN floor-standing digital signage provides 400-nit brightness for indoor use. Non-touch and IR touch models cover 32 to 86 inches; PCAP touch models cover 32 to 65 inches. Full-screen enclosure designs are listed separately in 64, 69, 75 and 86 inches, with configuration-specific dimensions and resolutions.

Scroll horizontally to compare sizes and configurations.

Digital Signage Totem — Non-touch
Specification32″43″49″55″65″75″86″
Configuration & dimensions
ModelYJC-320-FYJC-430-FYJC-490-FYJC-550-FYJC-650-FYJC-750-FYJC-860-F
Screen size32″43″49″55″65″75″86″
Screen orientationPortrait
Dimensions (mm)1700.02 × 460.83 × 22.28 mm1810.31 × 592.83 × 22.28 mm1864 × 669.8 × 22.3 mm1960.3 × 747.1 × 22.3 mm2000 × 875 × 24.2 mm2000.1 × 1004.9 × 88.5 mm2100.1 × 1154.1 × 68.5 mm
Net weight30 kg38 kg45 kg52 kg68 kg100 kg115 kg
Display performance
Native panel resolution1920 × 10801920 × 10801920 × 10803840 × 21603840 × 21603840 × 21603840 × 2160
Active display area (mm)698.4 × 392.85939.2 × 527.41073.8 × 6041211.4 × 682.21427.5 × 802.51649 × 9271872 × 1053
Aspect ratio16:9
Brightness400 cd/m²
Contrast ratio1200:1
Viewing angle178° / 178°
Response time6 ms
Backlight life50,000 hours
Operating hours24/7
System configuration & connectivity

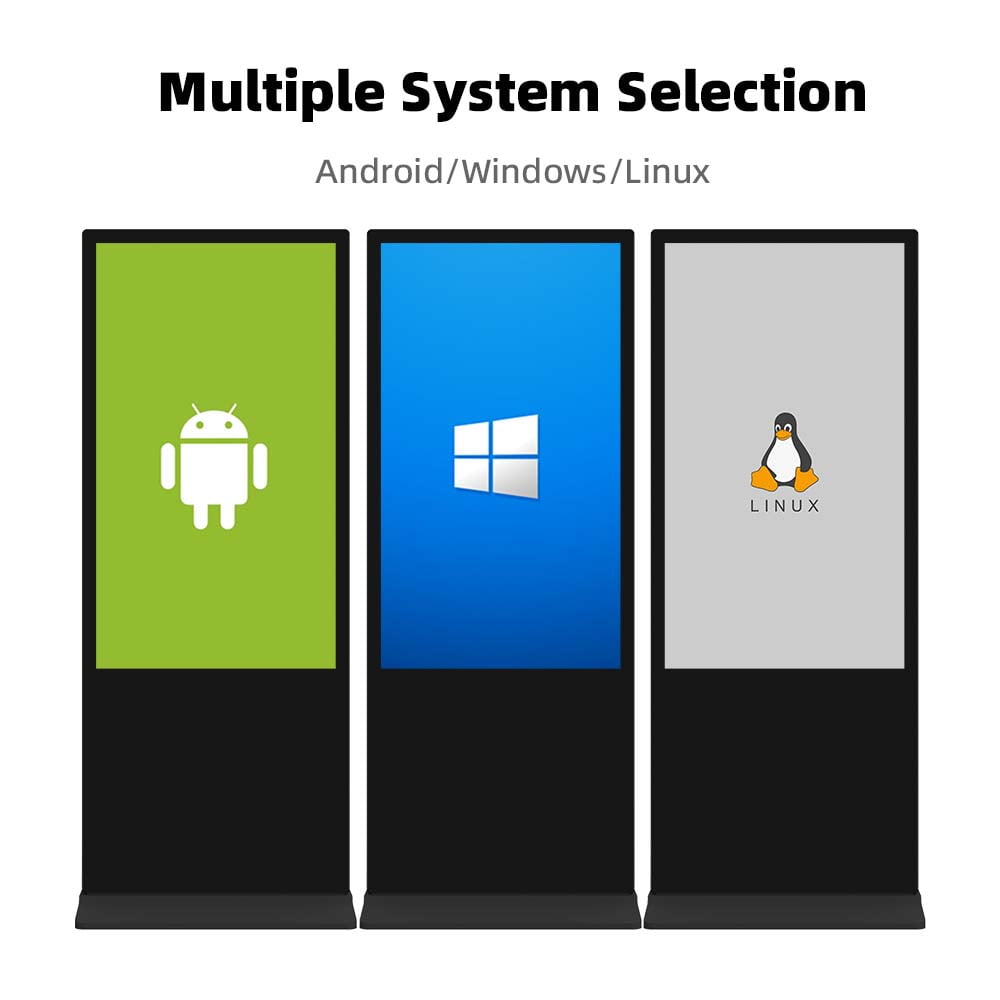

Operating systemAndroid / Windows (selectable)
ProcessorRK3568 / RK3576 (Android); customizable
MemoryCustomizable
StorageCustomizable
ConnectionsUSB × 2, Ethernet RJ45 × 1
NetworkWi-Fi / LAN
Mobile networkOptional 3G/4G
AudioBuilt-in speaker
Configuration options & integration
PanelIPS LCD
PlaybackVideo, images and text; 4K playback support
Power & operating conditions
Ingress protectionIP5X
Power supplyAC 100–240 V, 50/60 Hz
Maximum power consumption39 W60 W65 W75 W110 W240 W300 W
Operating environmentIndoor
Operating temperature0 °C – 45 °C
Storage temperature−10 °C – 50 °C
Operating humidity10%–80%

Refer to the selected model’s dimension drawing for the complete footprint and mounting details.

Enclosure depth excludes the base footprint. Check the dimension drawing before planning the installation.

Download Documents

Floor-Standing Digital Signage Features

Floor standing digital signage creates a visible information point without using wall space. Its tall format can sit near a store entrance, beside a reception area or within a public interior. The screen gives changing offers and notices a consistent place in the room.

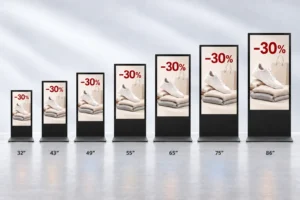

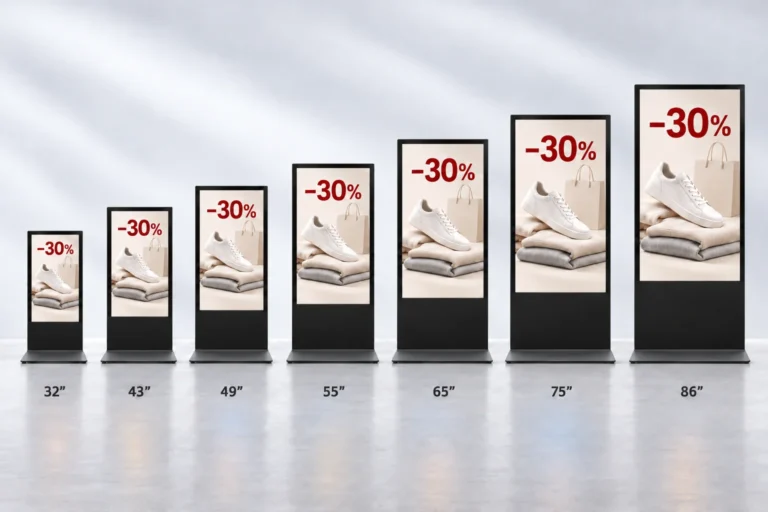

Illustration: Seven floor-standing digital signage displays, from 32 to 86 inches, show a matching 30% retail discount.

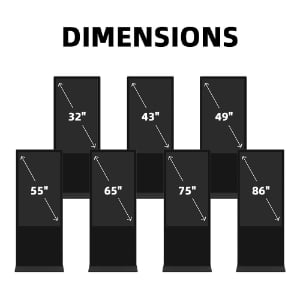

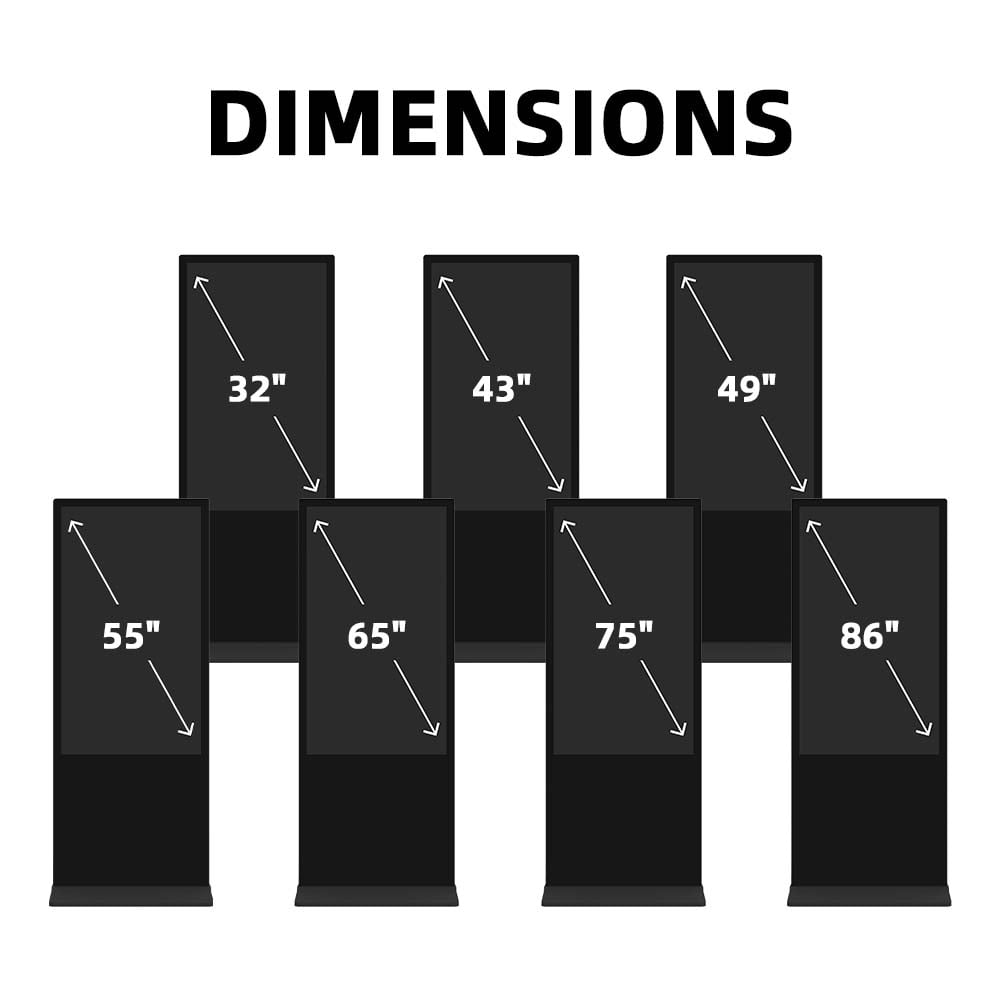

Standard IPS LCD Display in Seven Screen Sizes

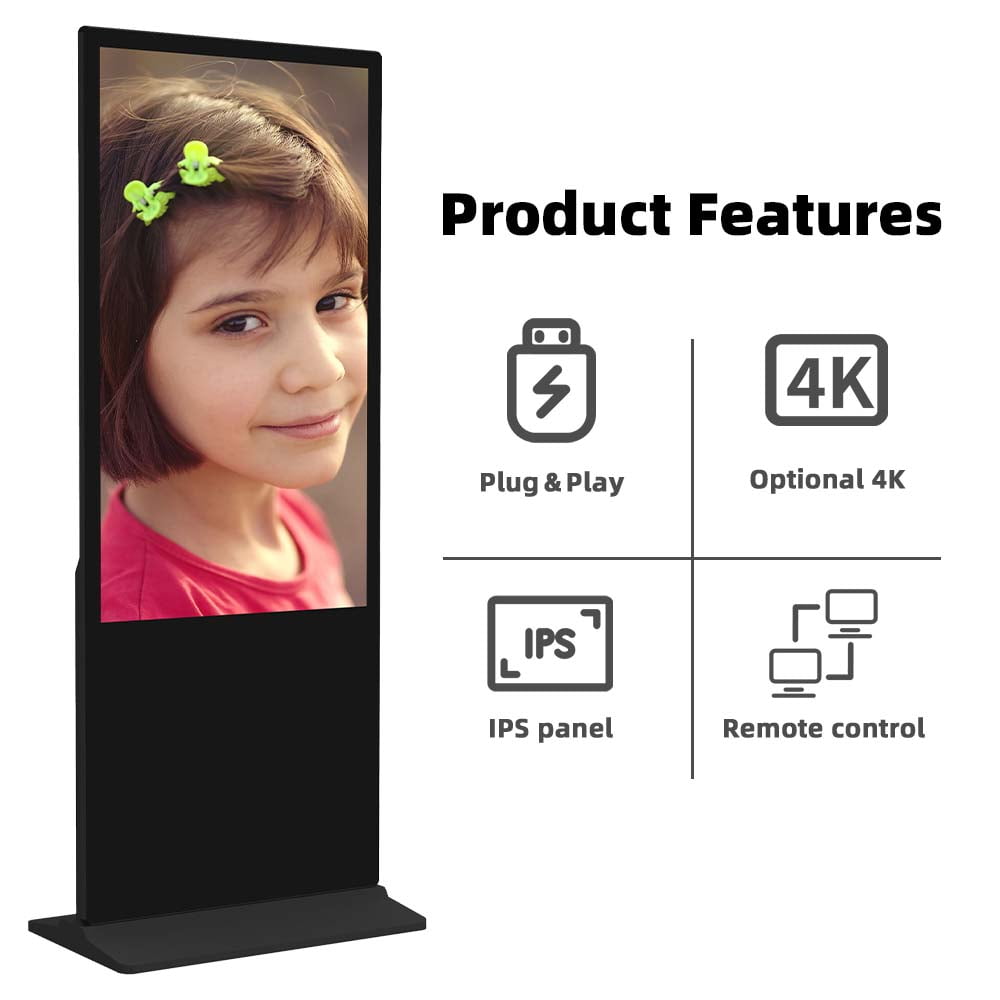

The IPS screen provides a 178° viewing angle for people approaching from different directions. A narrow bezel keeps attention on the content and gives the front of the unit a simple appearance. Standard models include 32, 43, 49, 55, 65, 75 and 86-inch screens. Full-screen models are available in 64, 69, 75 and 86 inches, with non-touch and IR-touch versions.

A floor standing LCD display can present a full-screen promotion or a more detailed information layout. Smaller sizes fit compact reception and notice areas, while larger screens offer more space for images and information in a wider interior.

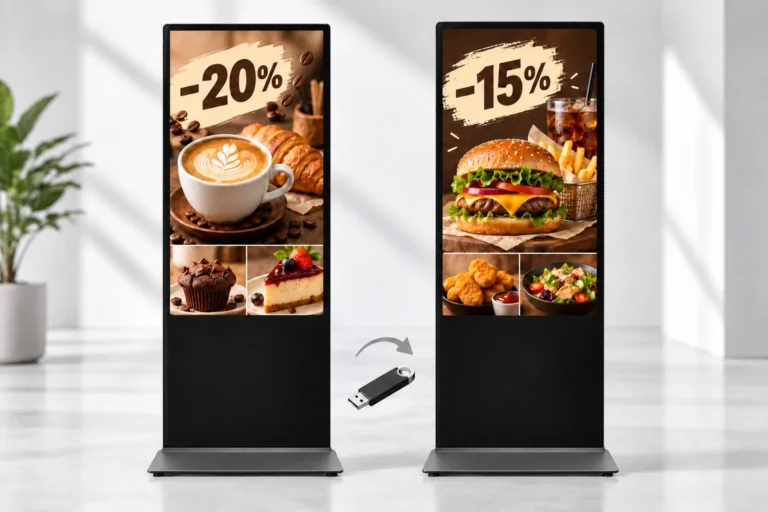

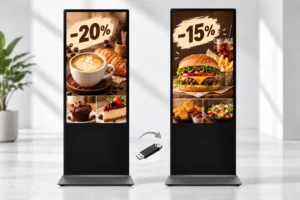

Illustration: Two floor-standing displays show cafe and burger promotions beside a USB content-update symbol.

Media Playback and USB Content Updates

The built-in player supports images, video and text. A full-screen layout is useful for a product promotion or a welcome message. Split-screen playback can combine a main image with supporting details such as opening times or service information.

One-click USB updates let staff replace files locally. The player supports 4K playback; native panel resolution is specified for the selected screen. Prepare files for that panel and test the full-screen or split-screen layout before putting the content into use.

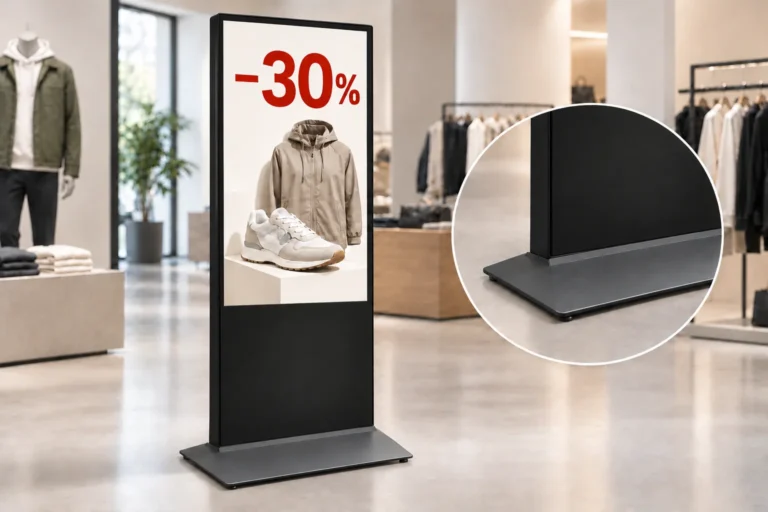

Illustration: A floor-standing display advertises clothing discounts inside a shop, with a close-up of its base.

Indoor Freestanding Enclosure and Base

The anti-tipping base supports stable placement in an indoor commercial space. The enclosure and base form one freestanding digital signage unit, creating a defined display point beside an entrance, queue or seating area.

Power is supplied from the site. The position should leave space for people to pass and for staff to reach the equipment. This product is intended for an indoor installation, with the screen size and base footprint selected for the room.

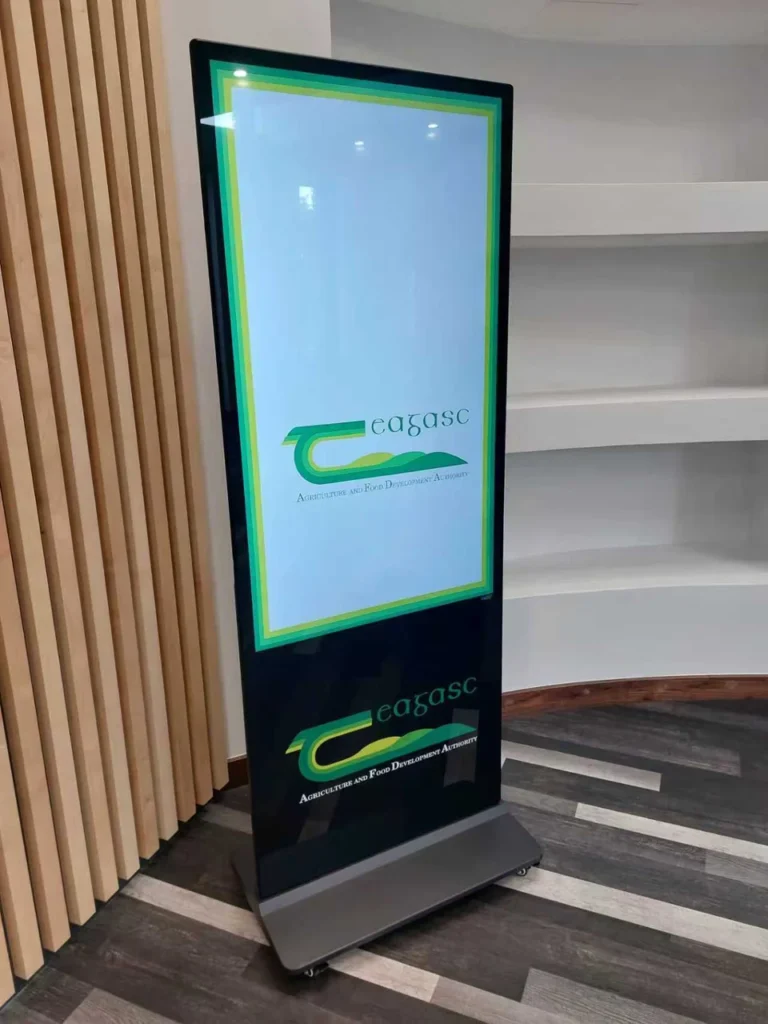

Black floor-standing display indoors, with Teagasc branding on the screen and the front of the enclosure.
Europe · Photographed in 2025

Custom Floor-Standing Digital Signage for Teagasc

Teagasc, an agriculture and food development organisation in Europe, uses a custom YJCEN floor-standing display. Installed indoors, it carries Teagasc branding on both the screen and enclosure, giving the content and hardware a consistent identity.

View all projects: Floor-Standing Displays
49-inch floor-standing digital signage beside a green wall in a university library interior.

Related Customer Project

49-Inch Double-Sided Digital Signage for a University Library

A YJCEN 55-inch floor-standing infrared touch display showing the Windows desktop for the Saudi Arabian public health project.

Related Customer Project

150 touch displays for a public health project

Indoor Digital Signs for Retail and Reception Areas

Shops can show offers, department guides and new arrivals. Hotels can display event schedules, room information and welcome messages. In offices, schools, hospitals and banks, floor standing LCD digital signage can carry the notices people need before they reach a desk.

The display content can change while the unit stays in the same position. A reception screen may carry visitor information during the day and an event programme later, using the player and files prepared for each purpose.

Planning Display Position and Power Access

Place the screen where people can stop to read it without obstructing an entrance, queue or corridor. Check both the enclosure footprint and the viewing distance. A floor-standing LCD display needs access to mains power and enough space for staff to update content and service the equipment.

Wall-Mounted and Portable Display Options

For a screen attached to a wall, explore our indoor digital signage. For a display that is moved between suitable indoor positions, see the portable digital signage display. For temporary use away from a mains connection, compare battery-powered digital signage.

Manuals and Drawings

Select your screen size and configuration to find the right documents.

55″ · Non-touchYJC-550-F

Product Manual

Model specifications and configuration details.

Download PDF

Dimension Drawing

Drawing for the selected size and configuration.

Download PDF

Installation Manual

Series installation guide. See the model drawing for dimensions and mounting details.

Download PDF
Browse all product documents

OEM, certification and warranty

YJCEN offers enclosure, colour and private-label customization for integrators and brand owners. Android or Windows configurations, memory and storage can be customized; RK3568 and RK3576 are Android processor options. Your application can be pre-installed and tested on the selected hardware.

Android configurations include a free cloud-based CMS with no limit on the number of accounts.

Samples are available from 1 unit. Standard models typically ship in 3–7 working days and customized units in 15–20 working days. Sample lead time varies by product; the quotation specifies the delivery schedule.

YJCEN's quality management system is ISO 9001 certified. CB certification covers our product range; CE, RoHS, FCC and ETL documentation is available for applicable models.

YJCEN products have a 3-year warranty, excluding user-caused damage and faults caused by improper screen installation.

OEM/ODM options · CB certificate · Warranty terms

Floor-Standing Digital Signage FAQs

What space is needed around the display?

Use the selected model drawing to check the base footprint and overall height. Leave a clear pedestrian route and allow access to power connections and the player for updates and maintenance.

Can staff update content without a network?

Yes. Prepared files can be loaded locally through USB. Test the file format and playback sequence on the selected player before distributing the campaign to several sites.

Can it show several content areas at once?

The player supports split-screen layouts. The layout can combine images, video and text according to the chosen playback setup.

Does 4K playback mean every panel is 4K?

No. Playback capability and native panel resolution are different specifications. The selected panel determines the physical pixel resolution of the screen.

Is this a battery-powered display?

This product uses mains power. Battery-powered models are available in a separate range for temporary display positions without a fixed power connection.

Can it be used outside?

This range is intended for indoor spaces. Our outdoor digital totem is designed for a fixed floor-standing position outdoors.

Which displays are stocked in Europe?

YJCEN’s European warehouse regularly stocks 55-inch floor-standing displays and 55-inch shop window displays. Delivery within 3 working days to EU countries applies to these in-stock models. Ask us about current stock for your order. Delivery is unavailable to countries affected by war or conflict.
