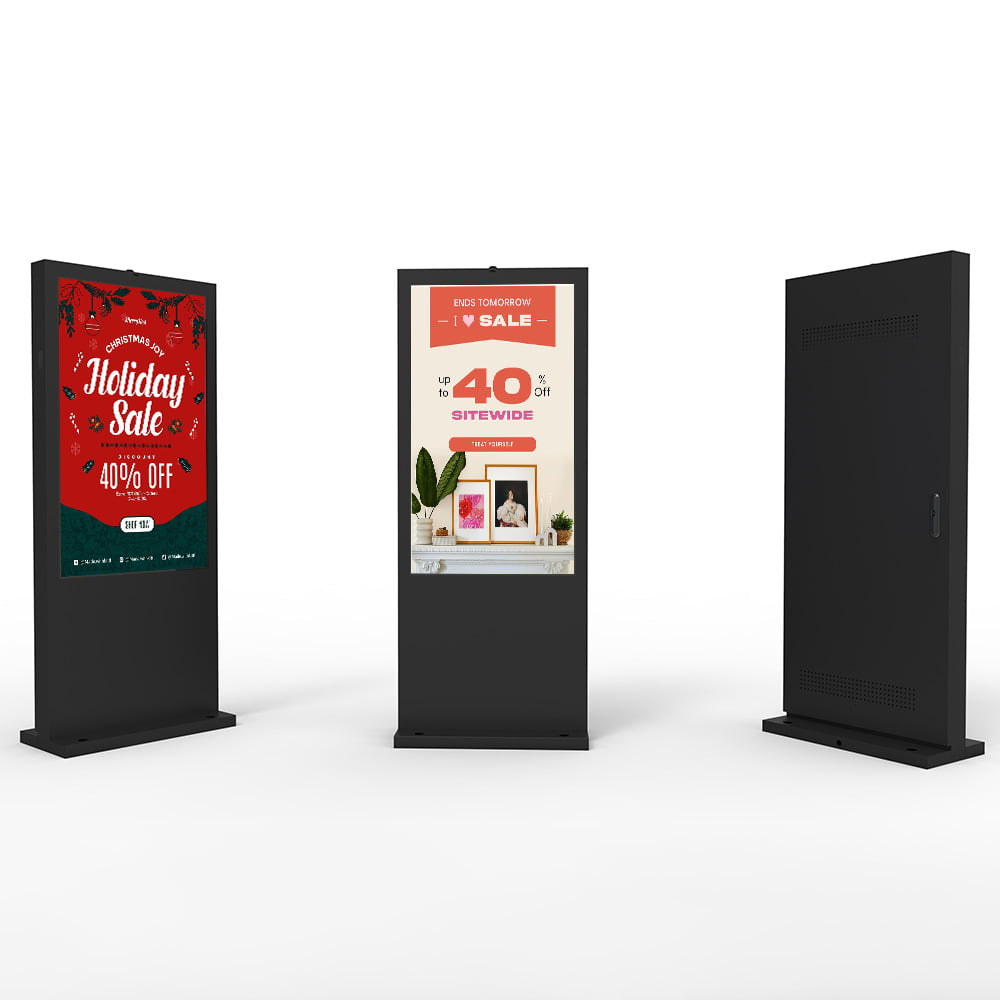

Freestanding outdoor signage for entrances, public spaces and commercial destinations.
Front
Sample orders from 1 unit 3-year warranty

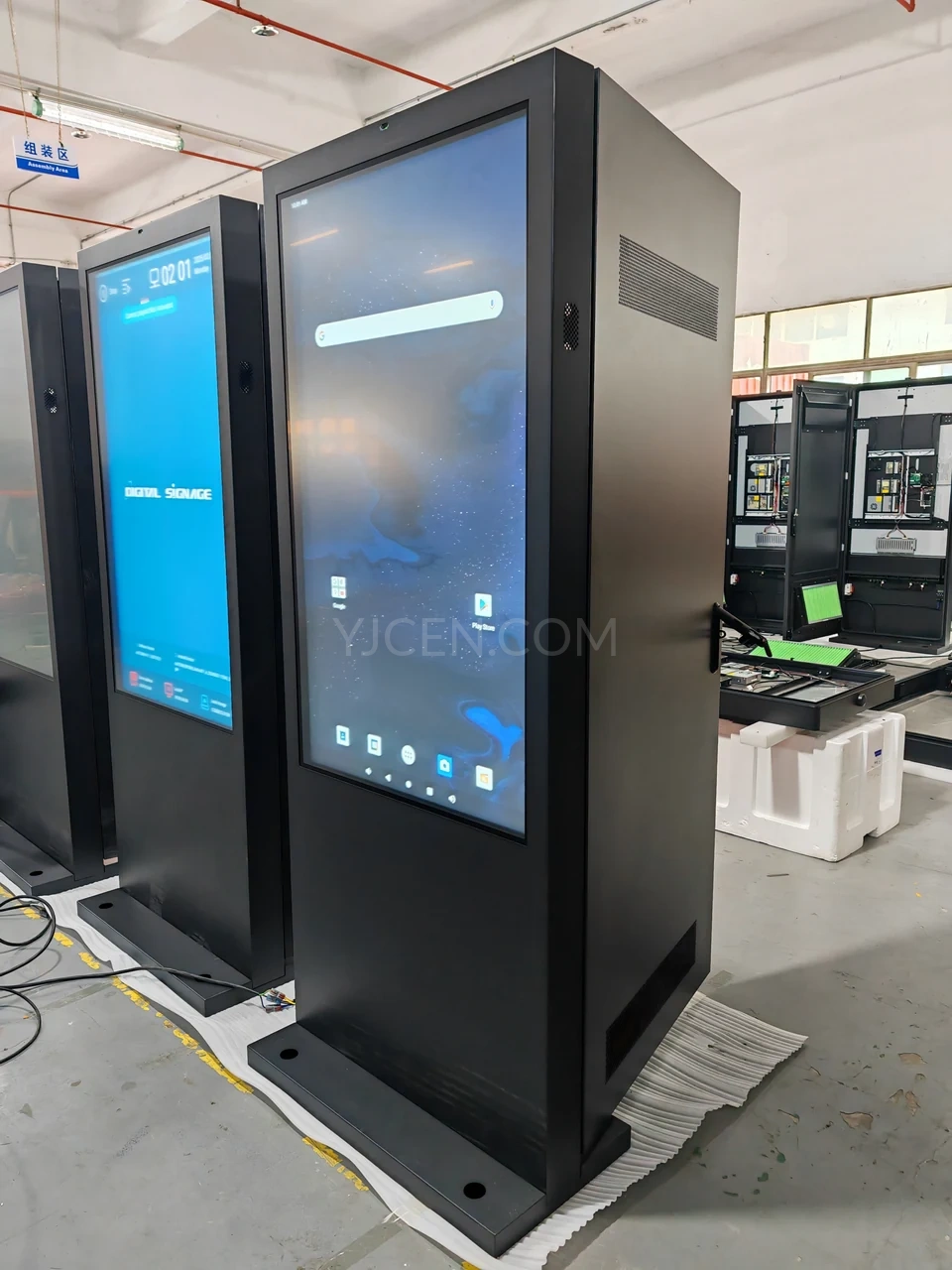

View termsBurn-in, image quality, touch, ports and appearance. Outdoor units also checked for water and dust protection.

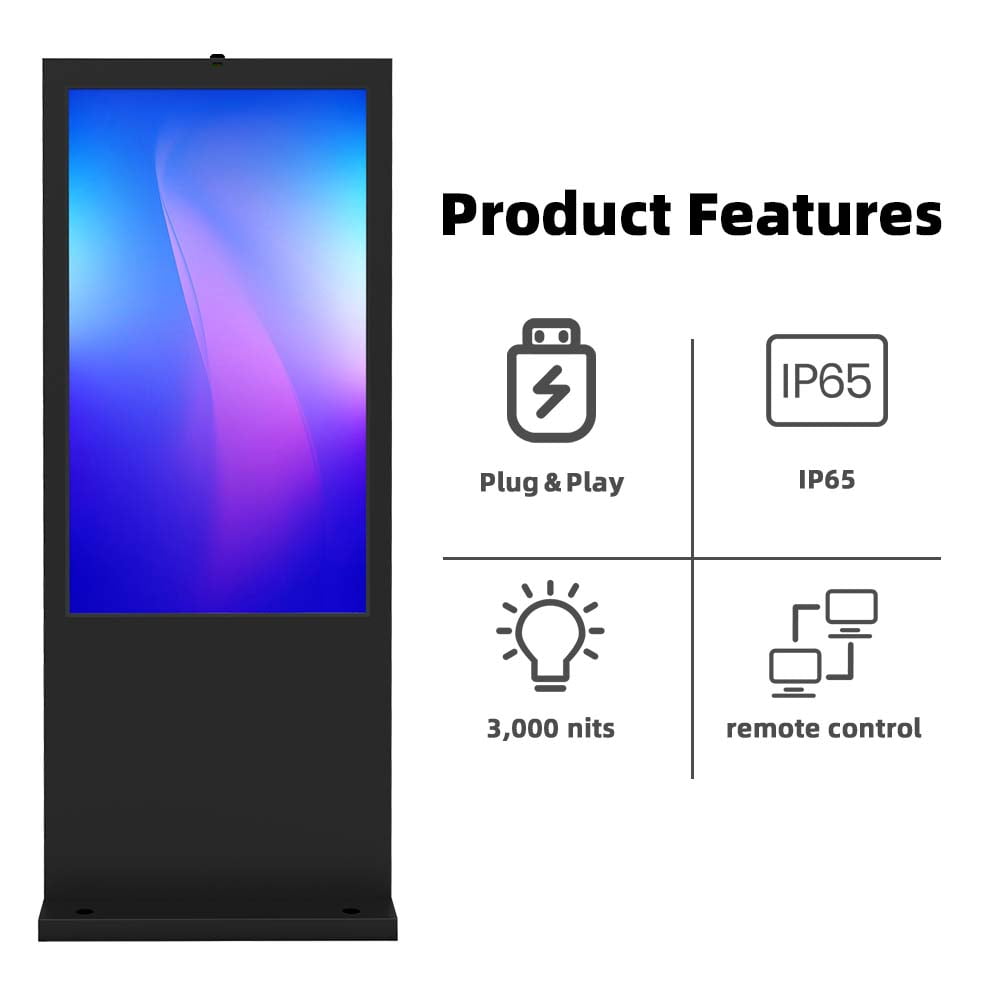

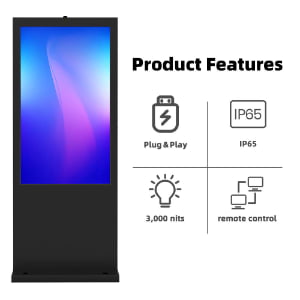

YJCEN outdoor floor-standing digital kiosks provide 3000-nit brightness and IP65 protection. Single- and double-sided configurations cover 32 to 98 inches. Enclosure dimensions vary by size and configuration.
Scroll horizontally to compare sizes and configurations.
| Specification | 32″ | 43″ | 49″ | 55″ | 65″ | 75″ | 86″ | 98″ |
|---|---|---|---|---|---|---|---|---|
| Configuration & dimensions | ||||||||
| Model | YJC-320-OD-F | YJC-430-OD-F | YJC-490-OD-F | YJC-550-OD-F | YJC-650-OD-F | YJC-750-OD-F | YJC-860-OD-F | YJC-980-OD-F |
| Screen size | 32″ | 43″ | 49″ | 55″ | 65″ | 75″ | 86″ | 98″ |
| Screen orientation | Portrait | |||||||
| Dimensions (mm) | 1785 × 550 × 125 mm | 1895 × 650 × 125 mm | 1856 × 725 × 125 mm | 1990 × 800 × 125 mm | 2100 × 924 × 130.3 mm | 2350 × 1200 × 230 mm | 2650 × 1340 × 250 mm | 2900 × 1514 × 260 mm |
| Net weight | 65 kg | 83 kg | 100 kg | 120 kg | 135 kg | 240 kg | 350 kg | 500 kg |
| Display performance | ||||||||
| Native panel resolution | 1920 × 1080 | 1920 × 1080 | 1920 × 1080 | 1920 × 1080 | 3840 × 2160 | 3840 × 2160 | 3840 × 2160 | 3840 × 2160 |
| Active display area (mm) | 699 × 394 mm(H×V) | 940 × 529 mm (H×V) | 1074 × 604 mm (H×V) | 1209 × 680 mm (H×V) | 1428 × 803 mm(H×V) | 1650 × 928 mm(H×V) | 1895 × 1066 mm (H×V) | 2159(H) × 1214(V) mm |
| Aspect ratio | 16:9 | |||||||
| Brightness | 3000 cd/m² | |||||||
| Contrast ratio | 1200:1 | |||||||
| Viewing angle | 178° / 178° | |||||||
| Response time | 6 ms | |||||||
| Backlight life | 50,000 hours | |||||||
| Operating hours | 24/7 | |||||||
| System configuration & connectivity | ||||||||

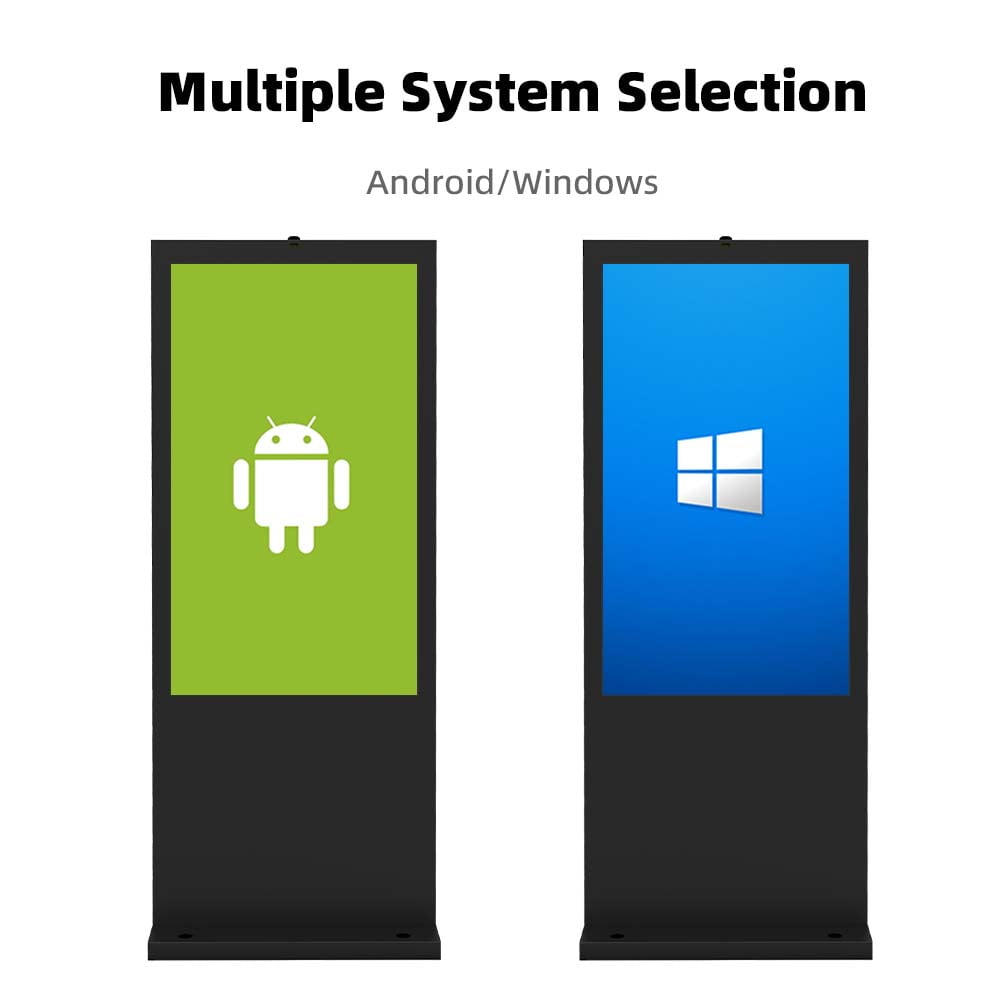

| Operating system | Android / Windows (selectable) | |||||||
| Processor | RK3568 / RK3576 (Android); customizable | |||||||
| Memory | Customizable | |||||||
| Storage | Customizable | |||||||
| Connections | USB × 2, HDMI IN × 1, Ethernet RJ45 × 1 | |||||||
| Network | Wi-Fi / LAN | |||||||
| Mobile network | Optional 3G/4G | |||||||
| Audio | Built-in speaker | |||||||
| Power & operating conditions | ||||||||
| Ingress protection | IP65 | |||||||
| Power supply | AC 100–240 V, 50/60 Hz | |||||||
| Maximum power consumption | 200 W | 230 W | 260 W | 290 W | 400 W | 530 W | 650 W | 1200 W |
| Operating environment | Outdoor | |||||||

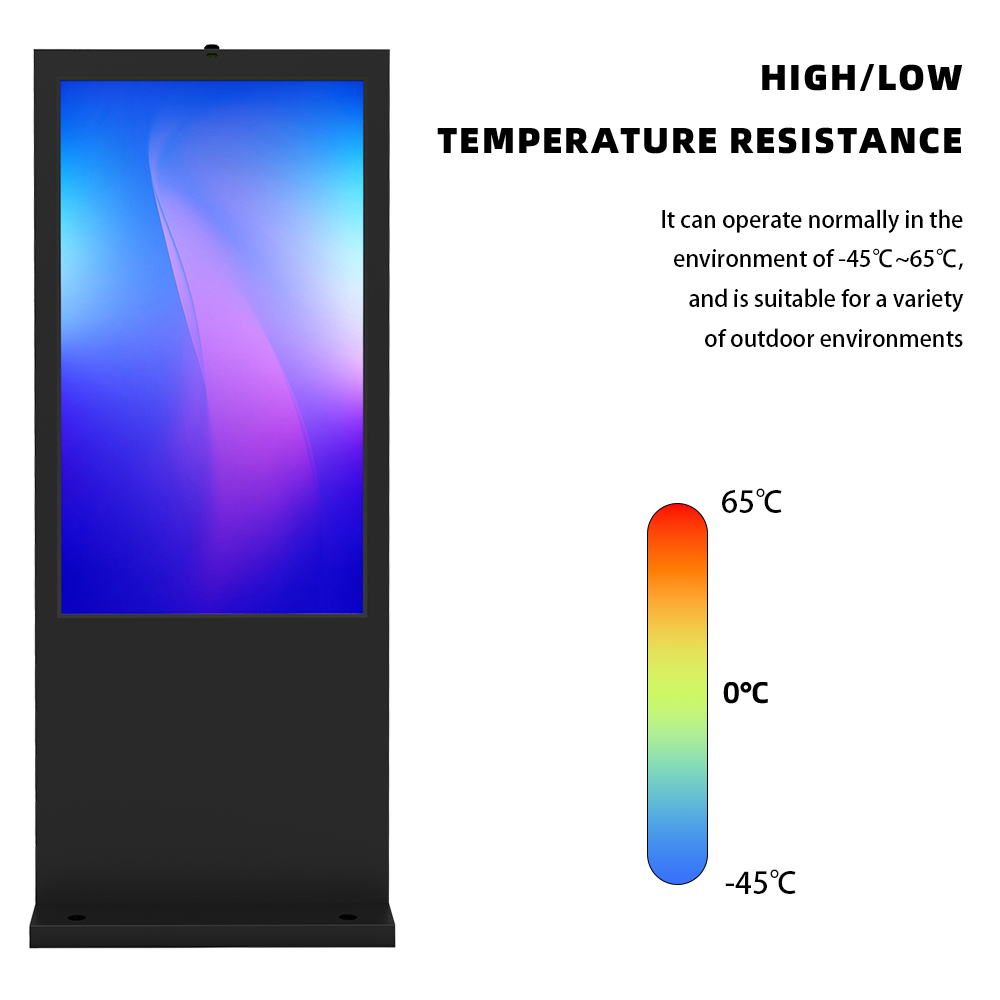

| Operating temperature | −45 °C – 65 °C | |||||||
| Storage temperature | −50 °C – 70 °C | |||||||
| Operating humidity | 10%–80% | |||||||
| Specification | 32″ | 43″ | 49″ | 55″ | 65″ | 75″ | 86″ |
|---|---|---|---|---|---|---|---|
| Configuration & dimensions | |||||||
| Model | Contact us to customize | YJC-750-OD-F | YJC-860-OD-F | ||||
| Screen size | 32″ | 43″ | 49″ | 55″ | 65″ | 75″ | 86″ |
| Screen orientation | Portrait | ||||||
| Dimensions (mm) | 1770 × 580 × 180 mm | 1950 × 780 × 280 mm | 2030 × 850 × 260 mm | 2200 × 930 × 275 mm | 2300 × 1040 × 275 mm | 2550 × 1200 × 300 mm | 2850 × 1360 × 400 mm |
| Net weight | Contact us to customize | 540 kg | 750 kg | ||||
| Display performance | |||||||
| Native panel resolution | Contact us to customize | 3840 × 2160 | 3840 × 2160 | ||||
| Active display area (mm) | 697 × 392 mm (H×V) | 941 × 530 mm (H×V) | 1074 × 604 mm (H×V) | 1210 × 680 mm (H×V) | 1429 × 804 mm (H×V) | 1652 × 930 mm (H×V) | 1895 × 1065 mm (H×V) |
| Aspect ratio | 16:9 | ||||||
| Brightness | 3000 cd/m² | ||||||
| Contrast ratio | 1200:1 | ||||||
| Viewing angle | 178° / 178° | ||||||
| Response time | 6 ms | ||||||
| Backlight life | 50,000 hours | ||||||
| Operating hours | 24/7 | ||||||
| System configuration & connectivity | |||||||
| Operating system | Android / Windows (selectable) | ||||||
| Processor | RK3568 / RK3576 (Android); customizable | ||||||
| Memory | Customizable | ||||||
| Storage | Customizable | ||||||
| Connections | USB × 2, HDMI IN × 1, Ethernet RJ45 × 1 | ||||||
| Network | Wi-Fi / LAN | ||||||
| Mobile network | Optional 3G/4G | ||||||
| Audio | Built-in speaker | ||||||
| Power & operating conditions | |||||||
| Ingress protection | IP65 | ||||||
| Power supply | AC 100–240 V, 50/60 Hz | ||||||
| Maximum power consumption | Contact us to customize | 1060 W | 1300 W | ||||
| Operating environment | Outdoor | ||||||
| Operating temperature | −45 °C – 65 °C | ||||||
| Storage temperature | −50 °C – 70 °C | ||||||
| Operating humidity | 10%–80% | ||||||
Use the model drawing to plan base dimensions and fixing positions for your installation.
An outdoor digital totem places information where a building wall is unavailable or faces the wrong direction. The enclosure can serve an entrance, plaza or visitor route, with the installation planned around the selected position.

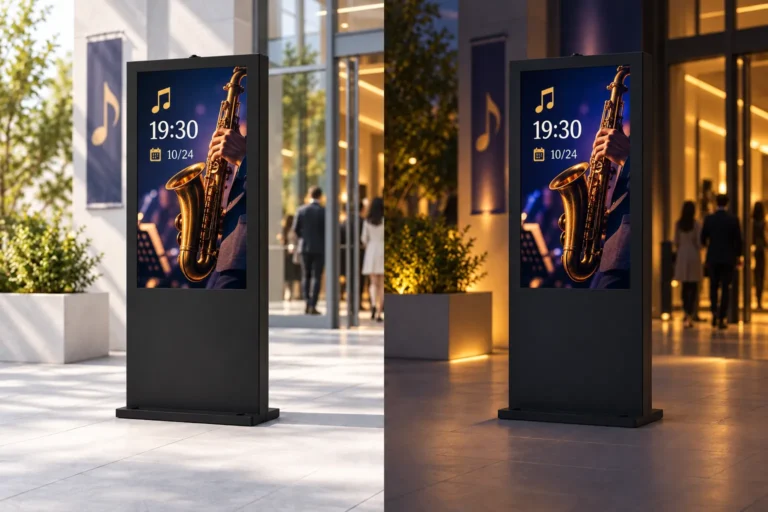

The 3,000-nit panel provides brightness for daylight use. Automatic brightness adjustment responds to ambient light as conditions change, allowing the output to follow the surroundings through the day and evening.
Anti-glare tempered glass helps manage reflections and protects the front of the screen. An outdoor advertising screen still depends on its direction and content layout, particularly where sunlight or bright surfaces reflect towards viewers.
The display has an IP65 protection rating for resistance to dust and water ingress. The screen, front glass and enclosure form a complete outdoor digital signage totem for fixed commercial and public locations.

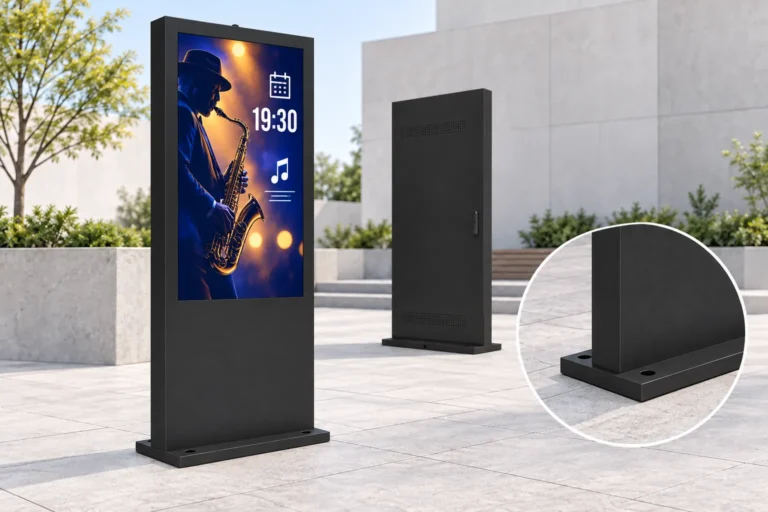

Plan the foundation and fixing arrangement around the selected display’s footprint and the installation site.

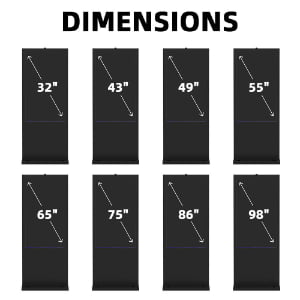

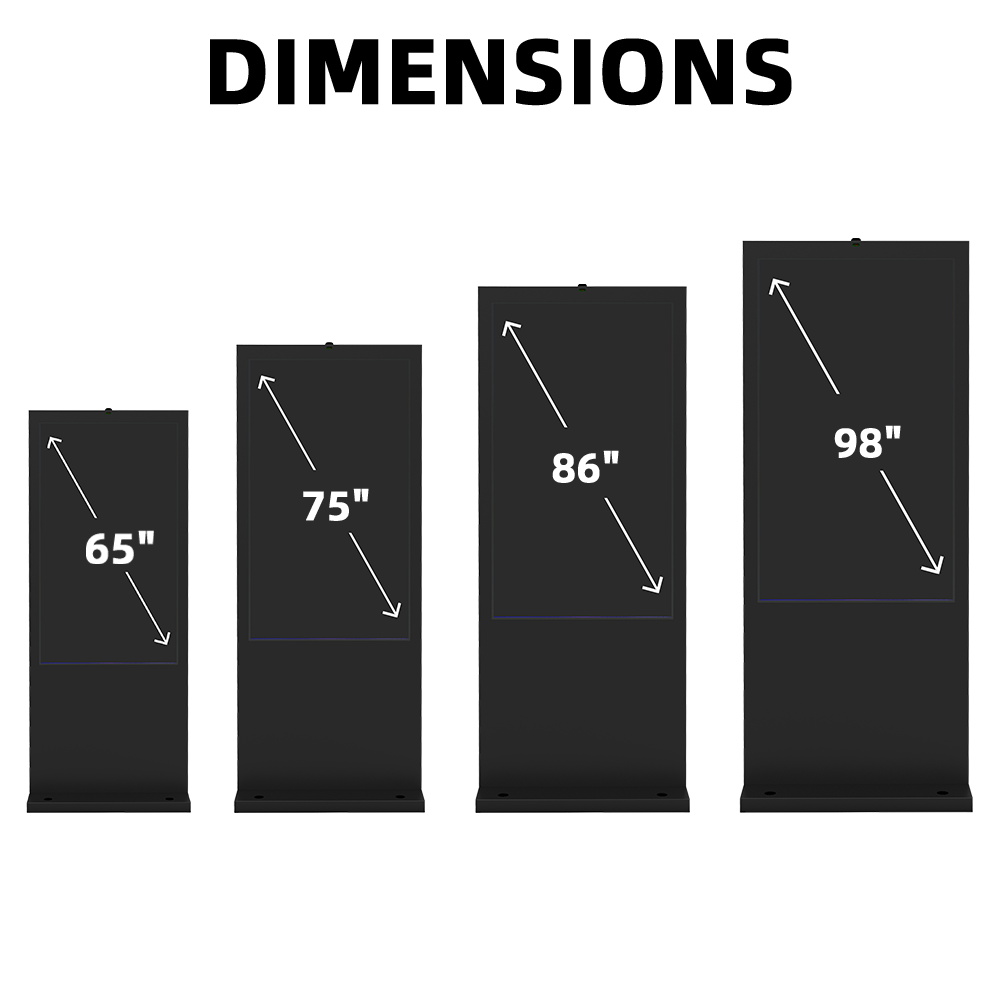

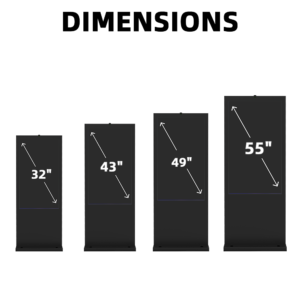

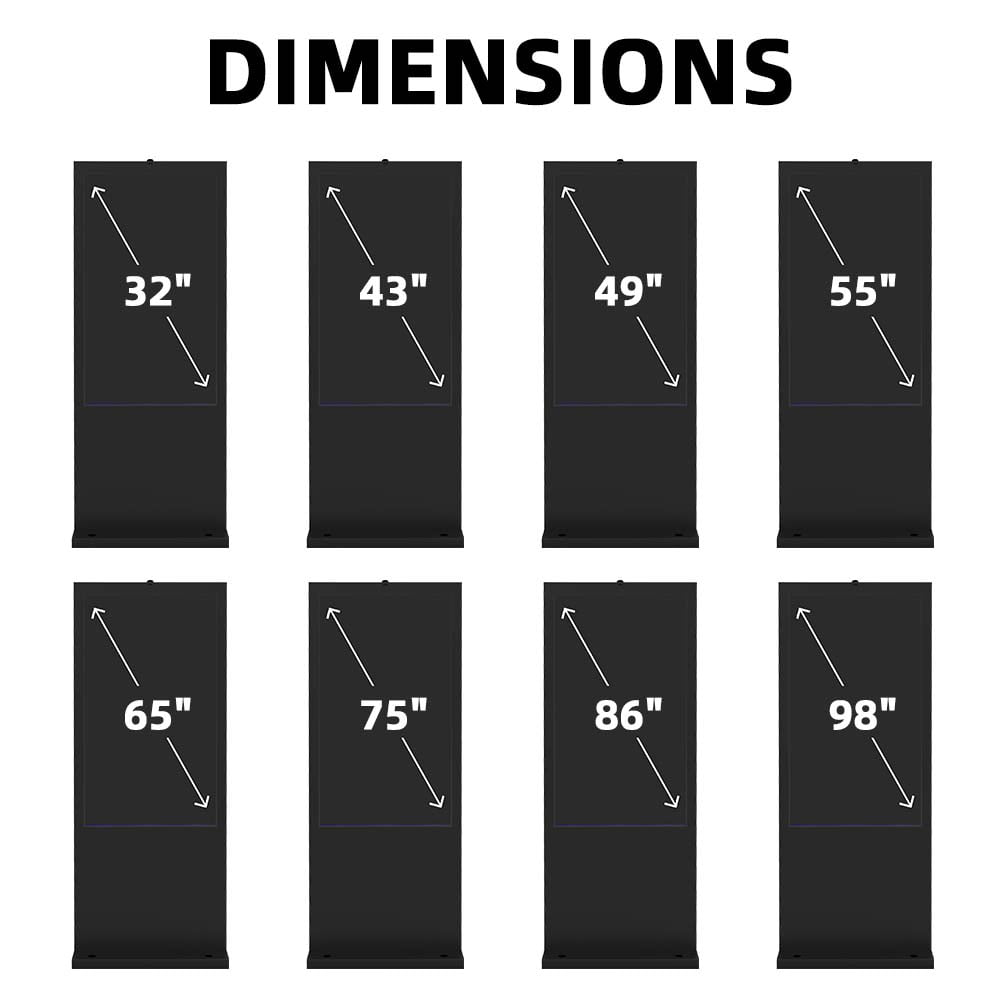

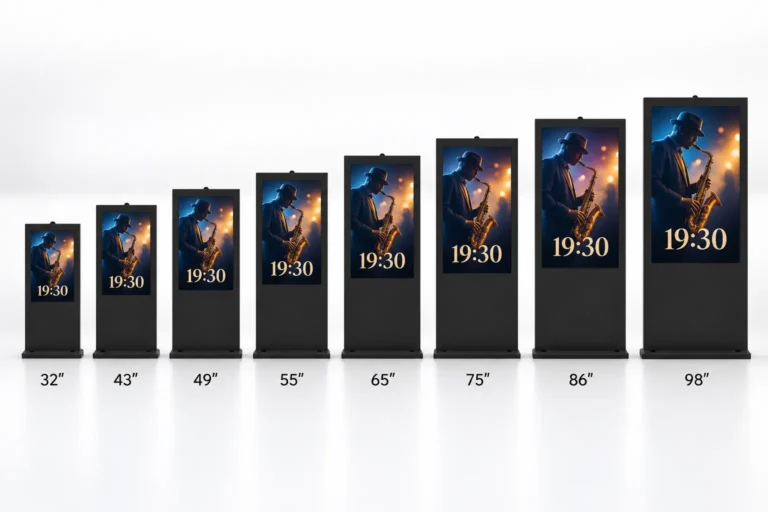

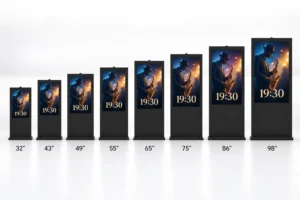

Available sizes are 32, 43, 49, 55, 65, 75, 86 and 98 inches. The range can serve a compact information point or a larger advertising position in an open area. Unit dimensions and mounting details vary with the screen size.
For a site with several display positions, sizes can be chosen around each location. A screen close to a pedestrian route may serve short notices, while a larger display at an entrance can carry a broader visual message.

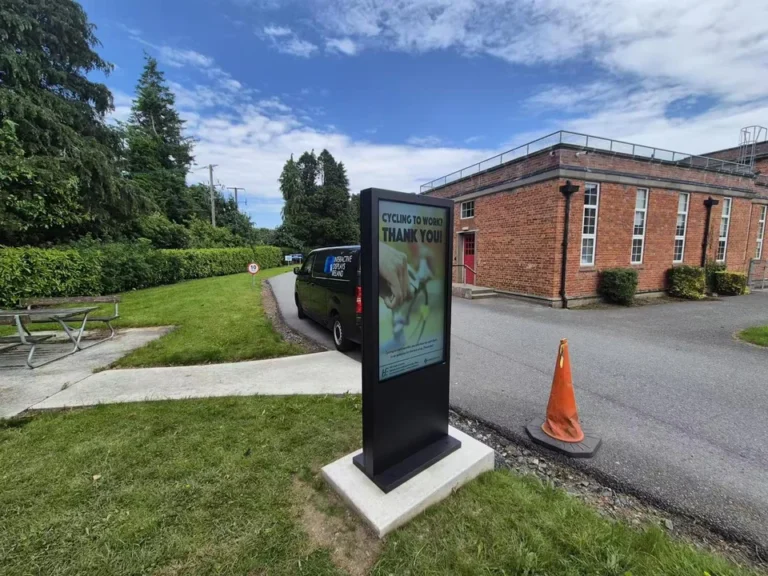

A customer in Europe uses a YJCEN outdoor digital totem to promote environmentally friendly commuting, including cycling to work. Fixed beside a building in an outdoor pedestrian area, the screen presents campaign messages to people passing by.
View all projects: Outdoor Display TotemsShopping areas can use the display for brand advertising, offers and local information. Visitor attractions and public squares can present directions, opening details and event notices. The screen becomes a consistent place for information as the content changes.
Sports venues and outdoor exhibitions can use an outdoor digital signage display for event programmes, sponsor content and announcements. Live scores or other connected data require a suitable application and source.
Station approaches and parking areas can use a totem for directions, notices and service information. Its floor-standing format allows the display position to follow the route people use rather than the location of a building wall.
This range is for a fixed outdoor display position. For a building exterior with suitable wall space, compare outdoor wall-mounted digital signage. For promotions that move between locations without a fixed mains connection, see the high-brightness outdoor battery display.
Select your screen size and configuration to find the right documents.
Double-sided dimension drawings: 32 / 43 / 49 / 55 / 65 / 75 / 86″.
32″ · Single-sidedYJC-320-OD-F
Model specifications and configuration details.
Drawing for the selected size and configuration.
Series installation guide. See the model drawing for dimensions and mounting details.
32″ · Double-sided
Double-sided, fan-cooled
43″ · Single-sidedYJC-430-OD-F
Model specifications and configuration details.
Drawing for the selected size and configuration.
Series installation guide. See the model drawing for dimensions and mounting details.
43″ · Double-sided
Double-sided, fan-cooled
49″ · Single-sidedYJC-490-OD-F
Model specifications and configuration details.
Drawing for the selected size and configuration.
Series installation guide. See the model drawing for dimensions and mounting details.
49″ · Double-sided
Double-sided, fan-cooled
55″ · Single-sidedYJC-550-OD-F
Model specifications and configuration details.
Drawing for the selected size and configuration.
Series installation guide. See the model drawing for dimensions and mounting details.
55″ · Double-sided
Double-sided, fan-cooled
65″ · Single-sidedYJC-650-OD-F
Model specifications and configuration details.
Drawing for the selected size and configuration.
Series installation guide. See the model drawing for dimensions and mounting details.
65″ · Double-sided
Double-sided, fan-cooled
75″ · Single-sidedYJC-750-OD-F
Model specifications and configuration details.
Drawing for the selected size and configuration.
Series installation guide. See the model drawing for dimensions and mounting details.
75″ · Double-sidedYJC-750-OD-F
Model specifications and configuration details.
Drawing for the selected size and configuration.
Series installation guide. See the model drawing for dimensions and mounting details.
86″ · Single-sidedYJC-860-OD-F
Model specifications and configuration details.
Drawing for the selected size and configuration.
Series installation guide. See the model drawing for dimensions and mounting details.
86″ · Double-sidedYJC-860-OD-F
Model specifications and configuration details.
Drawing for the selected size and configuration.
Series installation guide. See the model drawing for dimensions and mounting details.
98″ · Single-sidedYJC-980-OD-F
Model specifications and configuration details.
Drawing for the selected size and configuration.
Series installation guide. See the model drawing for dimensions and mounting details.
YJCEN offers enclosure, colour and private-label customization for integrators and brand owners. Android or Windows configurations, memory and storage can be customized; RK3568 and RK3576 are Android processor options. Your application can be pre-installed and tested on the selected hardware.
Android configurations include a free cloud-based CMS with no limit on the number of accounts.
Samples are available from 1 unit. Standard models typically ship in 3–7 working days and customized units in 15–20 working days. Sample lead time varies by product; the quotation specifies the delivery schedule.
YJCEN's quality management system is ISO 9001 certified. CB certification covers our product range; CE, RoHS, FCC and ETL documentation is available for applicable models.
YJCEN products have a 3-year warranty, excluding user-caused damage and faults caused by improper screen installation.
No. It has its own floor-standing enclosure. The installation requires a suitable base or fixing arrangement for the chosen screen and site. For base, cable-entry and service-space planning, use Outdoor Digital Totem Installation & CAD Guide.
This range is intended for a fixed position. For routine movement and battery operation, the high-brightness outdoor battery display provides a different product format.
Check the pedestrian route, viewing distance, available footprint and nearby obstructions. Plan power and data access, and have the fixing or foundation arrangement assessed for the selected unit and local site conditions. For the full outdoor display selection process, see How to Choose an Outdoor Digital Signage Display.
Yes. Automatic brightness adjustment responds to surrounding light. The panel’s stated maximum brightness is 3,000 nits.
It can display connected information with an appropriate player, application and data connection. Those systems are configured separately from the display enclosure.
IP65 describes dust and water protection. Foundation and fixing design also take account of the screen size and site conditions. To put these choices into a comparable quotation, use Outdoor LCD Display Buying Checklist: RFQ & Technical Specs.
Share the screen size, quantity and intended outdoor location so we can prepare the display specification. Contact YJCEN.
