A mobile, battery-powered display for outdoor promotions without a nearby power outlet.
Front
Sample orders from 1 unit 3-year warranty
View termsBurn-in, image quality, touch, ports and appearance. Outdoor units also checked for water and dust protection.

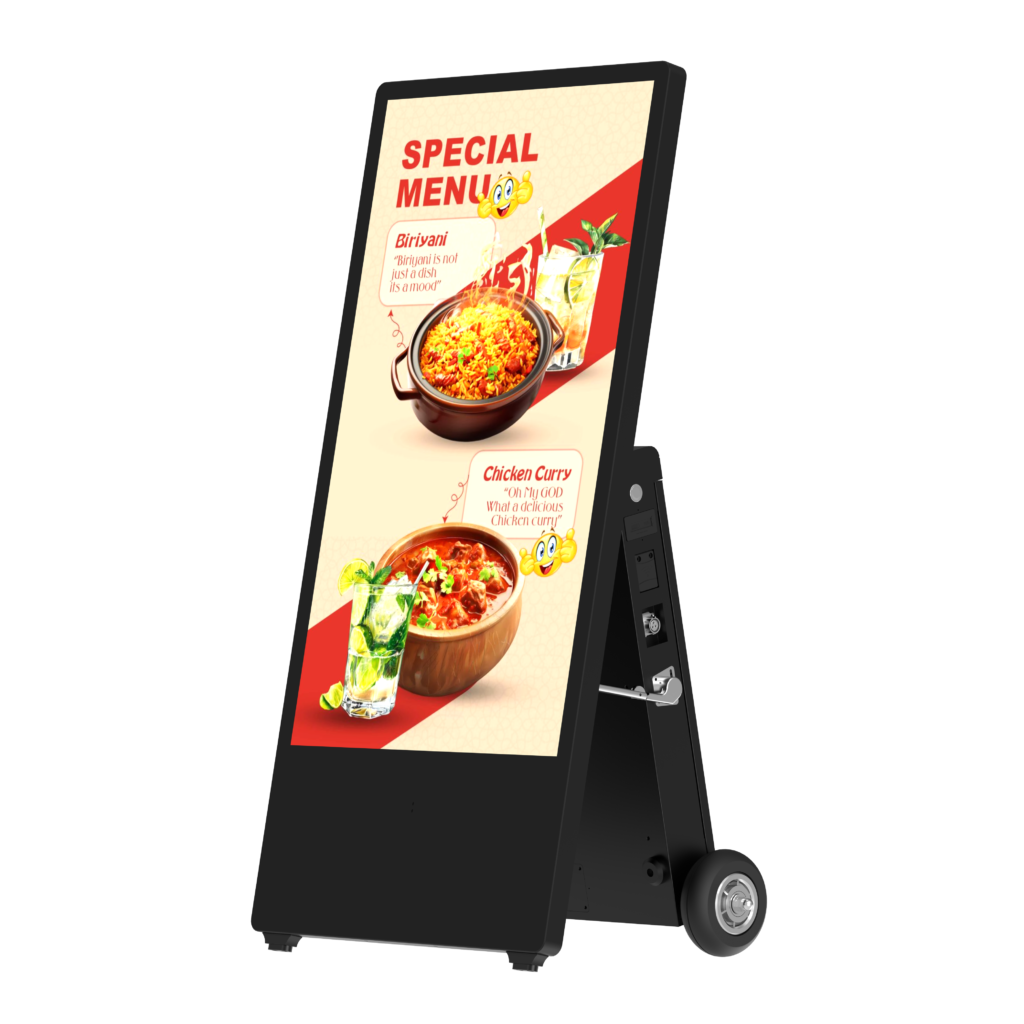

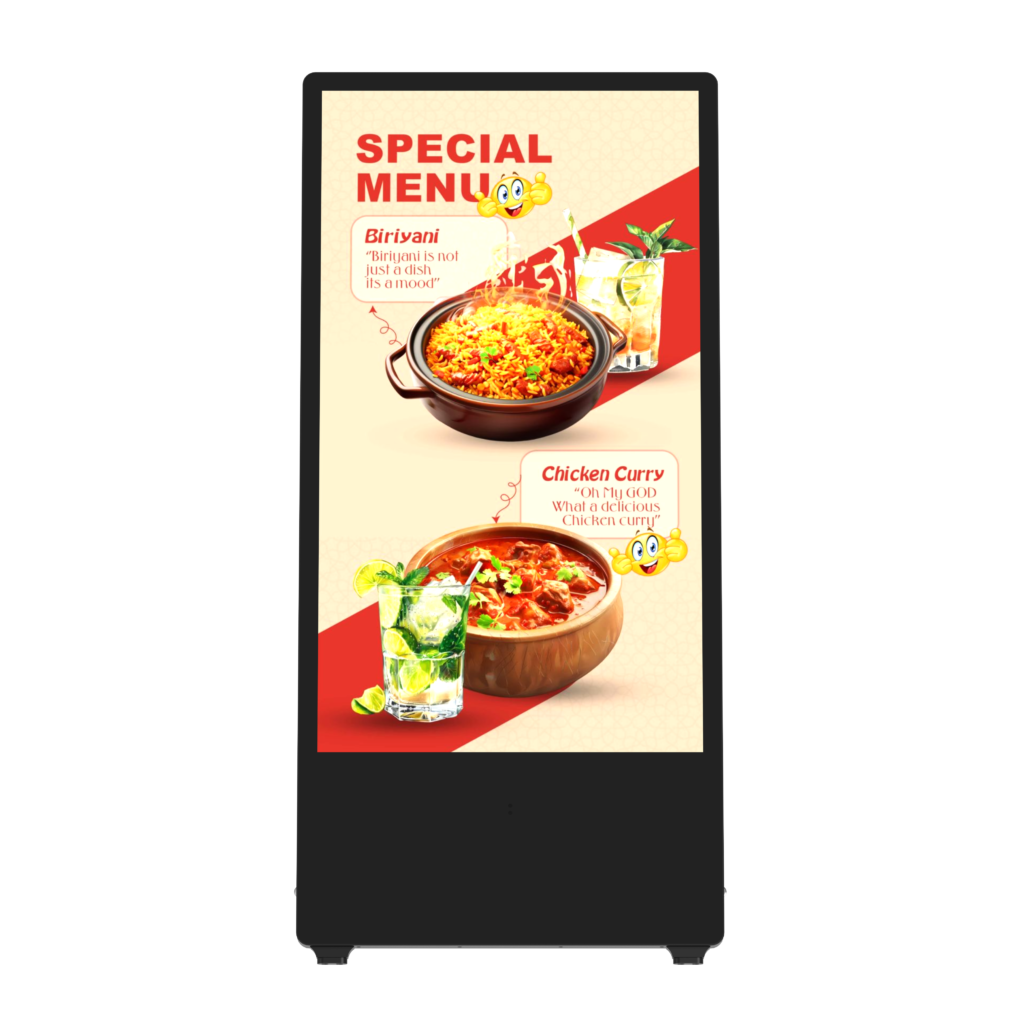

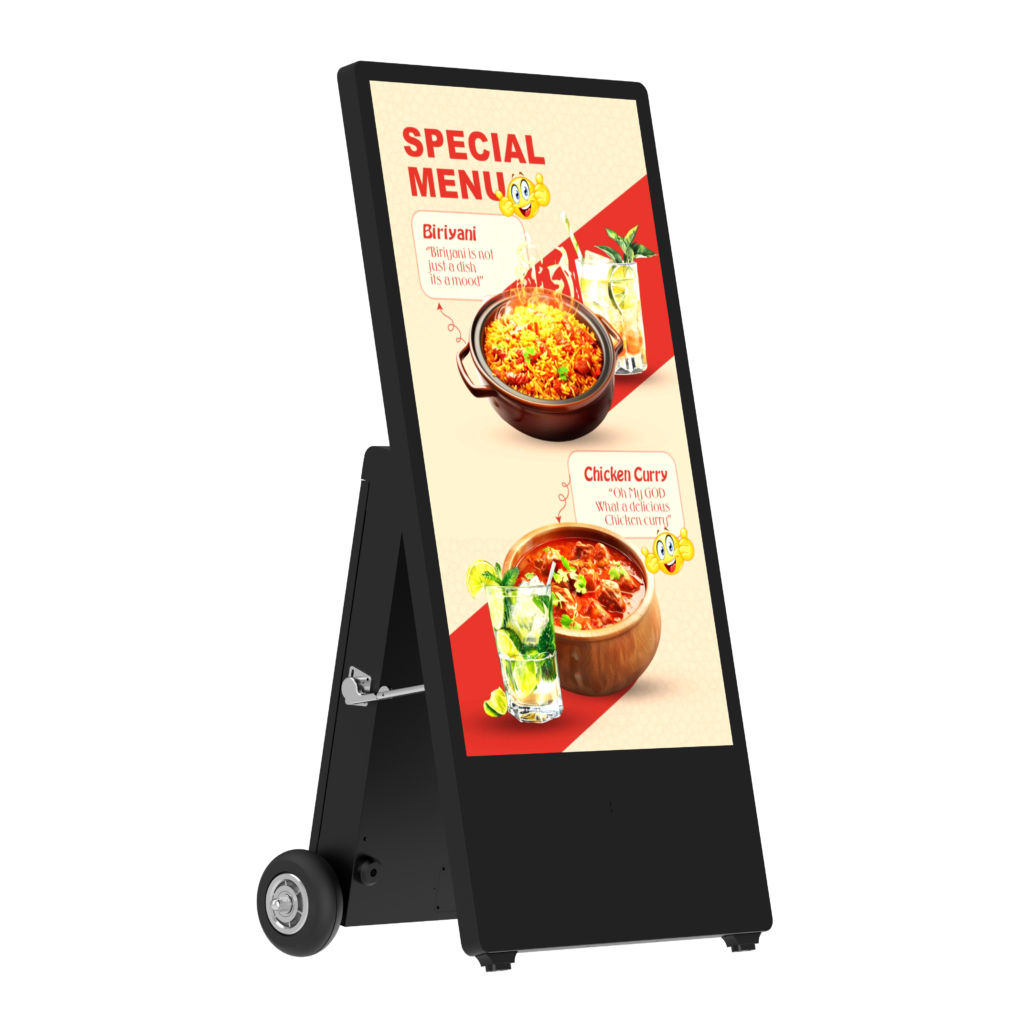

YJCEN's 43-inch outdoor battery A-board has an IP65 enclosure and a 24 V, 78 Ah LiFePO4 battery. At maximum brightness, the 2000-nit version runs for up to 14 hours and the 2500-nit version for up to 11 hours. The up-to-42-hour runtime applies at minimum brightness.
Scroll horizontally to compare sizes and configurations.
| Specification | 2000-nit version | 2500-nit version |
|---|---|---|
| Configuration & dimensions | ||
| Screen size | 43″ | |
| Screen orientation | Portrait | |
| Dimensions (H × W × D) | 1235 × 584 × 485 mm | |
| Support | Foldable; fixed support optional | |
| Mobility | 6-inch lockable casters | |
| Touch technology | Optional | |
| Display performance | ||
| Native panel resolution | 1080 × 1920 | |
| Brightness | 2000 cd/m² | 2500 cd/m² |
| Viewing angle | 178° / 178° | |
| Brightness control | Automatic brightness control | |
| Panel operating hours | 24/7 | |
| System configuration & connectivity | ||
| Operating system | Android / Windows (selectable) | |
| Processor | RK3568 / RK3576 (Android); customizable | |
| Memory | Customizable | |
| Storage | Customizable | |
| Connections | USB × 2, Ethernet RJ45 × 1 | |
| Network | Wi-Fi / LAN | |
| Audio | Built-in speaker | |
| Battery & power | ||
| Battery | 24 V, 78 Ah LiFePO4 | |
| Runtime at maximum brightness | Up to 14 hours | Up to 11 hours |
| Runtime in typical mixed use | Approximately 25–30 hours | Approximately 20–25 hours |
| Runtime at minimum brightness | Up to 42 hours | |
| Charging Time | Approximately 7 hours from empty | |
| Power supply | AC 100–240 V, 50/60 Hz | |
| Maximum power consumption | 115 W | 144 W |
| Minimum power consumption | 45 W | |
| Power & operating conditions | ||
| Ingress protection | IP65 | |
| Impact resistance | IK06 | |
| Operating environment | Outdoor | |
| Operating temperature | −20 °C – 65 °C | |
| Storage temperature | −25 °C – 70 °C | |
| Operating humidity | 10%–90% | |
Both versions are rated for up to 42 hours at minimum brightness. Compare the maximum-brightness runtime below with your daily operating hours when choosing a version.
Refer to the selected model’s dimension drawing for the complete footprint and mounting details.
Place the screen beside a shop entrance, restaurant menu or outdoor event. The battery supplies the screen during operation, so a power socket does not have to determine the display position.
The high-brightness LCD display is available in 2,000 and 2,500-nit versions. Automatic brightness adjustment responds to the surrounding light, helping the output follow changing conditions through the day.
Choose the brightness around the viewing position, reflections and hours of operation. The 2,500-nit version provides more light output; the 2,000-nit version has a longer rated runtime at its maximum brightness.
A built-in LiFePO4 battery powers the display away from a mains connection. Charging takes approximately seven hours from empty. Plan charging around the operating schedule and use the supplied charger.
Compare runtime at maximum brightness, typical mixed use and minimum brightness below. Actual runtime varies with settings, content, temperature and battery condition.

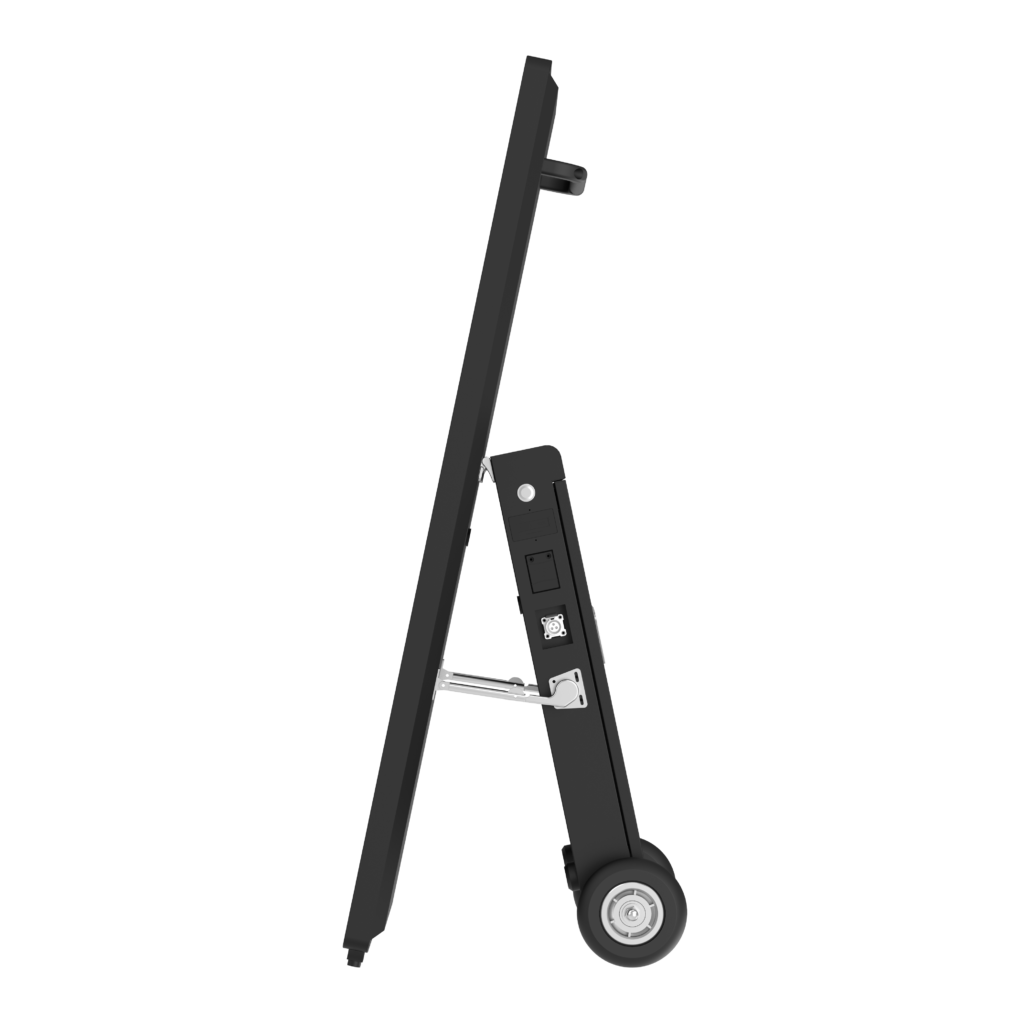

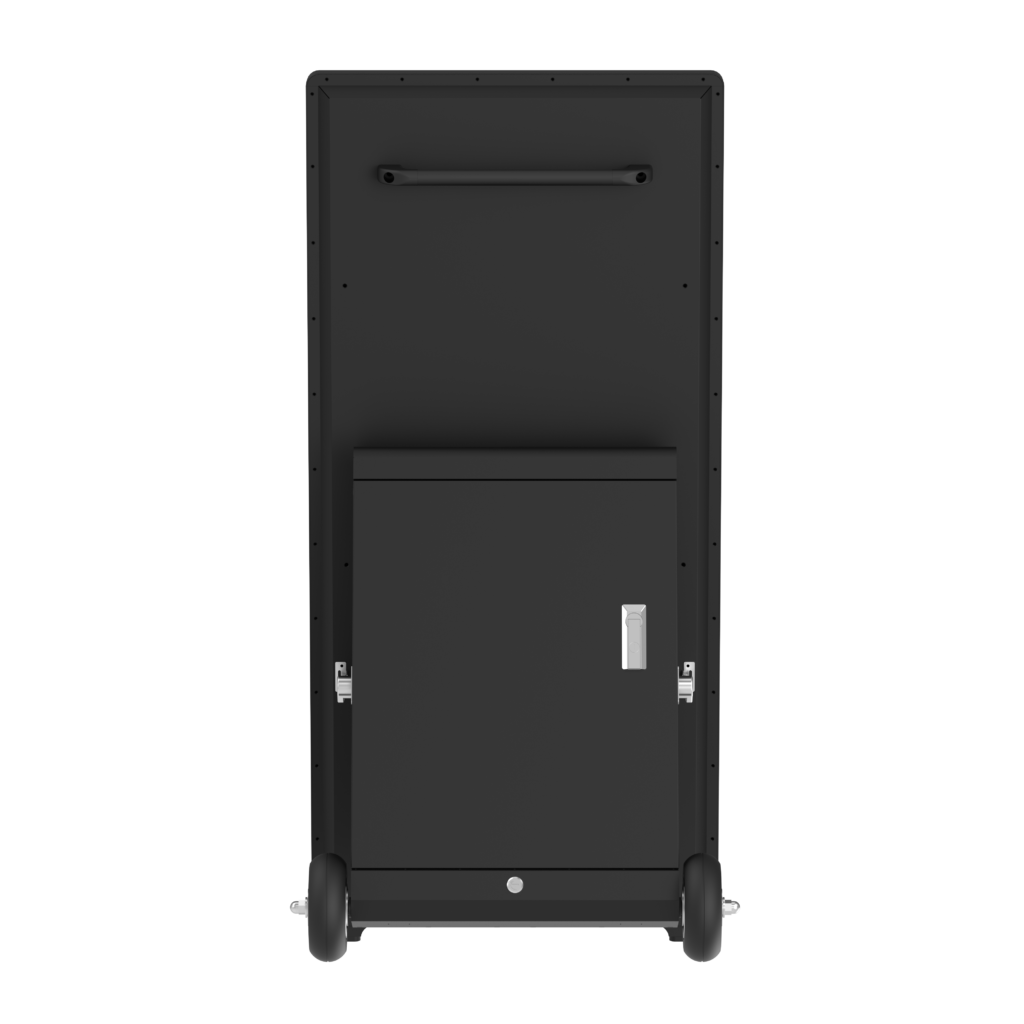

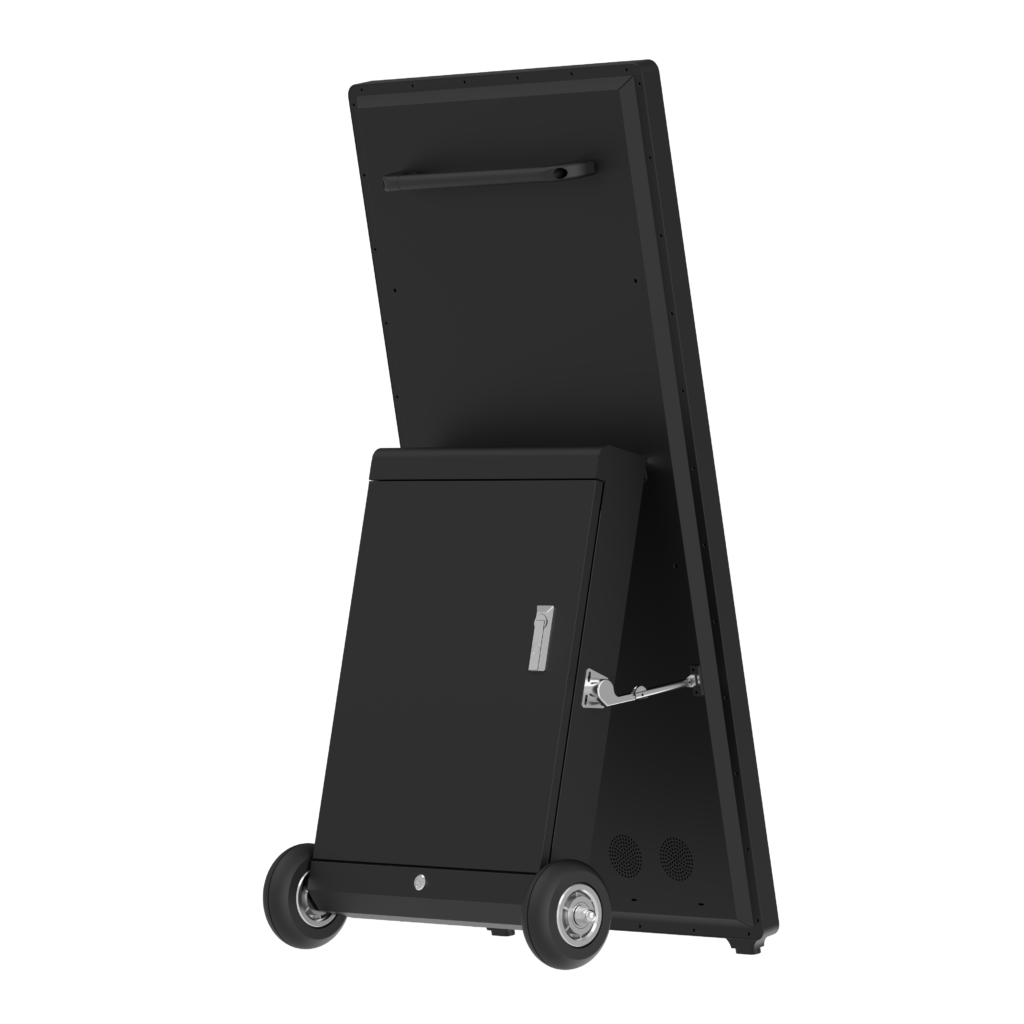

The display has an IP65 protection rating for resistance to dust and water ingress. A rear handle and two lockable wheels help staff move and position the screen. The rear support folds for storage, and the front glass has an anti-reflective coating.
Allow room for the support when choosing a position, and keep a clear route back to the charging area. The model drawing is available in the downloads section for checking the footprint.
A customer in Europe uses YJCEN high-brightness battery-powered digital signage to display fashion promotions. The white wheeled screen stands outside a building entrance, showing a model’s clothing in a portrait image.
All projectsUse an outdoor digital poster for restaurant menu highlights, shop offers, event schedules or directions. The portrait format suits a single clear message, with text sized for the distance at which customers will read it.
The Android 11 player supports USB, Ethernet and Wi-Fi. A compatible signage application handles playback and content updates. Prepare portrait artwork at 1080 × 1920 and check the playlist on the screen before use.
For a permanently installed screen using mains power, compare our outdoor LCD display. For this battery model, tell us the quantity, brightness version and planned hours of use. Contact YJCEN for a quotation.
Select your screen size and configuration to find the right documents.
43″ · 2000-nit version43-inch high-brightness model
Shared product manual covering the 2000-nit and 2500-nit versions.
Shared dimension drawing for both 43-inch brightness versions.
43″ · 2500-nit version43-inch high-brightness model
Shared product manual covering the 2000-nit and 2500-nit versions.
Shared dimension drawing for both 43-inch brightness versions.
Series installation guide. See the model drawing for dimensions and mounting details.
YJCEN offers enclosure, colour and private-label customization for integrators and brand owners. Android or Windows configurations, memory and storage can be customized; RK3568 and RK3576 are Android processor options. Your application can be pre-installed and tested on the selected hardware.
Android configurations include a free cloud-based CMS with no limit on the number of accounts.
Samples are available from 1 unit. Standard models typically ship in 3–7 working days and customized units in 15–20 working days. Sample lead time varies by product; the quotation specifies the delivery schedule.
YJCEN's quality management system is ISO 9001 certified. All YJCEN products are CE, RoHS, FCC and ETL certified. CB certification covers our product range.
YJCEN products have a 3-year warranty, excluding user-caused damage and faults caused by improper screen installation.
YJCEN's high-brightness battery A-board is a 43-inch IP65 model with 2000- or 2500-nit configurations. The standard battery A-board has 1500-nit brightness and IP65 protection in 32, 43 and 55 inches. Battery capacity and runtime differ between the two ranges.
Battery operation does not require Wi-Fi. Offline playback depends on the signage application and locally stored content. Check that the intended playlist can run without a network before moving the display into place.
No. The 42-hour figure applies at minimum brightness. At maximum brightness, the rated runtime is up to 14 hours for the 2,000-nit version and up to 11 hours for the 2,500-nit version.
Tell us the installation country, screen size, quantity and intended use. Include your content playback and operating-time requirements so we can discuss the configuration for your project.
