Outdoor Wall-Mounted Digital Signage

High-brightness outdoor signage with a reinforced bracket for wall installation.

Front

  • 32–98″Landscape models
  • 3,000 nitsAuto brightness
  • IP65Weather protection
  • Anti-glareProtective glass
  • 24/7Operating hours

Configuration options

Orientation
Landscape: 32–98″; portrait: 32–86″
Operating system
Android / Windows
OEM / ODM
Enclosure, branding & hardware

Sample orders from 1 unit 3-year warranty

View terms
View Projects

100% Pre-Shipment Inspection

Burn-in, image quality, touch, ports and appearance. Outdoor units also checked for water and dust protection.

Wall-Mounted Outdoor Display Specifications

YJCEN outdoor wall-mounted digital signage combines 3000-nit brightness with IP65 protection. Landscape configurations cover 32 to 98 inches; portrait configurations cover 32 to 86 inches. Each orientation has its own enclosure dimensions, with an HDMI input for an external content source.

Scroll horizontally to compare sizes and configurations.

Outdoor Wall-Mounted Digital Signage — Landscape
Specification32″43″49″55″65″75″86″98″
Configuration & dimensions
ModelYJC-320-OD-WYJC-430-OD-WYJC-490-OD-WYJC-550-OD-WYJC-650-OD-WYJC-750-OD-WYJC-860-OD-WYJC-980-OD-W
Screen size32″43″49″55″65″75″86″98″
Screen orientationLandscape

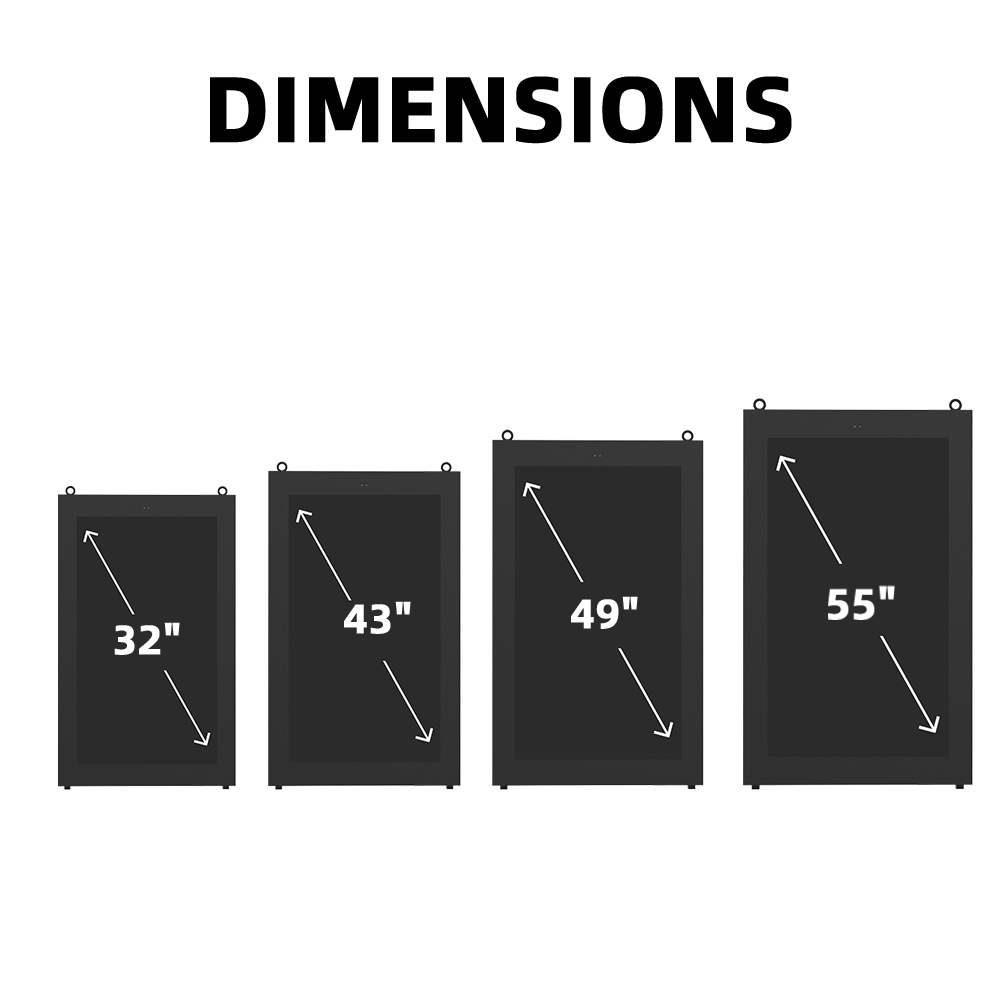

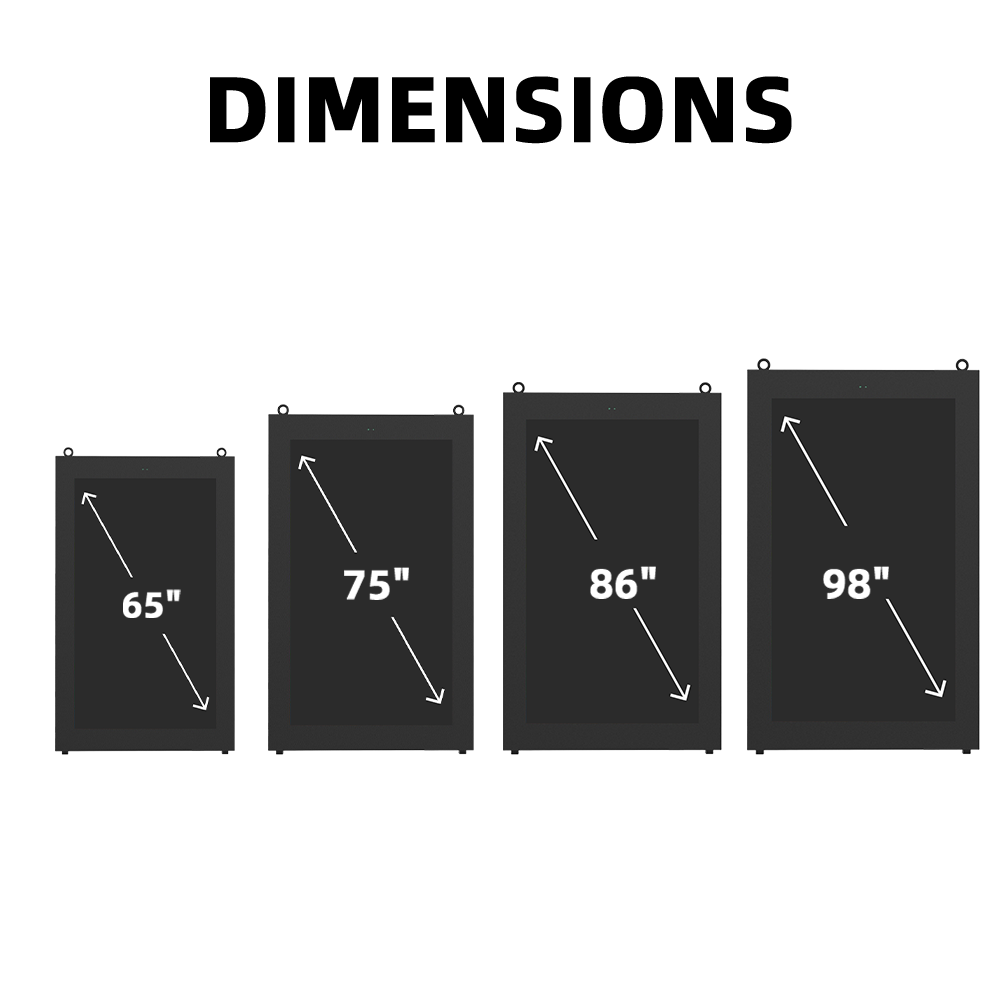

Dimensions (mm)860 × 600 × 198 mm1150 × 760.3 × 198 mm1285 × 855 × 198 mm1420 × 930 × 198 mm1620 × 1050 × 210 mm1890 × 1228 × 245 mm2180 × 1460 × 350 mm2450 × 1580 × 385 mm
Net weight46 kg72 kg79 kg92 kg135 kg197 kg320 kg430 kg
Display performance
Native panel resolution1920 × 10801920 × 10801920 × 10801920 × 10803840 × 21603840 × 21603840 × 21603840 × 2160
Active display area (mm)697 (H) × 392 (W)mm941 (H) × 529 (W)mm1074 (H) × 604 (W)mm1209 (H) × 680 (W)mm1428(H) × 803(W)mm1650 (H) × 928 (W)mm1915 (H) × 1086 (W)mm2158 (H) × 1214 (W)mm
Aspect ratio16:9
Brightness3000 cd/m²
Contrast ratio1200:1
Viewing angle178° / 178°
Response time6 ms
Backlight life50,000 hours
Operating hours24/7
System configuration & connectivity

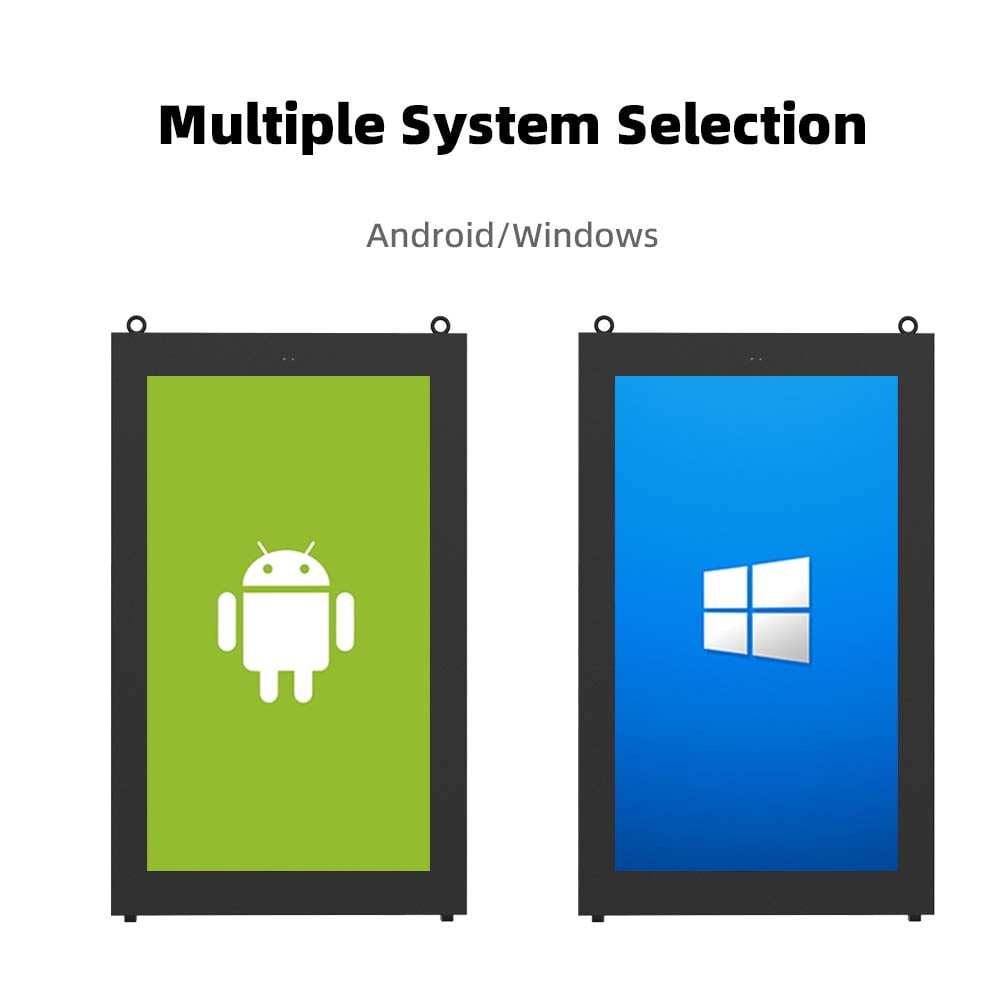

Operating systemAndroid / Windows (selectable)
ProcessorRK3568 / RK3576 (Android); customizable
MemoryCustomizable
StorageCustomizable
ConnectionsUSB × 2, HDMI IN × 1, Ethernet RJ45 × 1
NetworkWi-Fi / LAN
Mobile networkOptional 3G/4G
AudioBuilt-in speaker
Configuration options & integration
InstallationReinforced wall-mount bracket supplied
Power & operating conditions
Ingress protectionIP65
Power supplyAC 100–240 V, 50/60 Hz
Maximum power consumption200 W230 W260 W290 W400 W530 W650 W1200 W
Operating environmentOutdoor

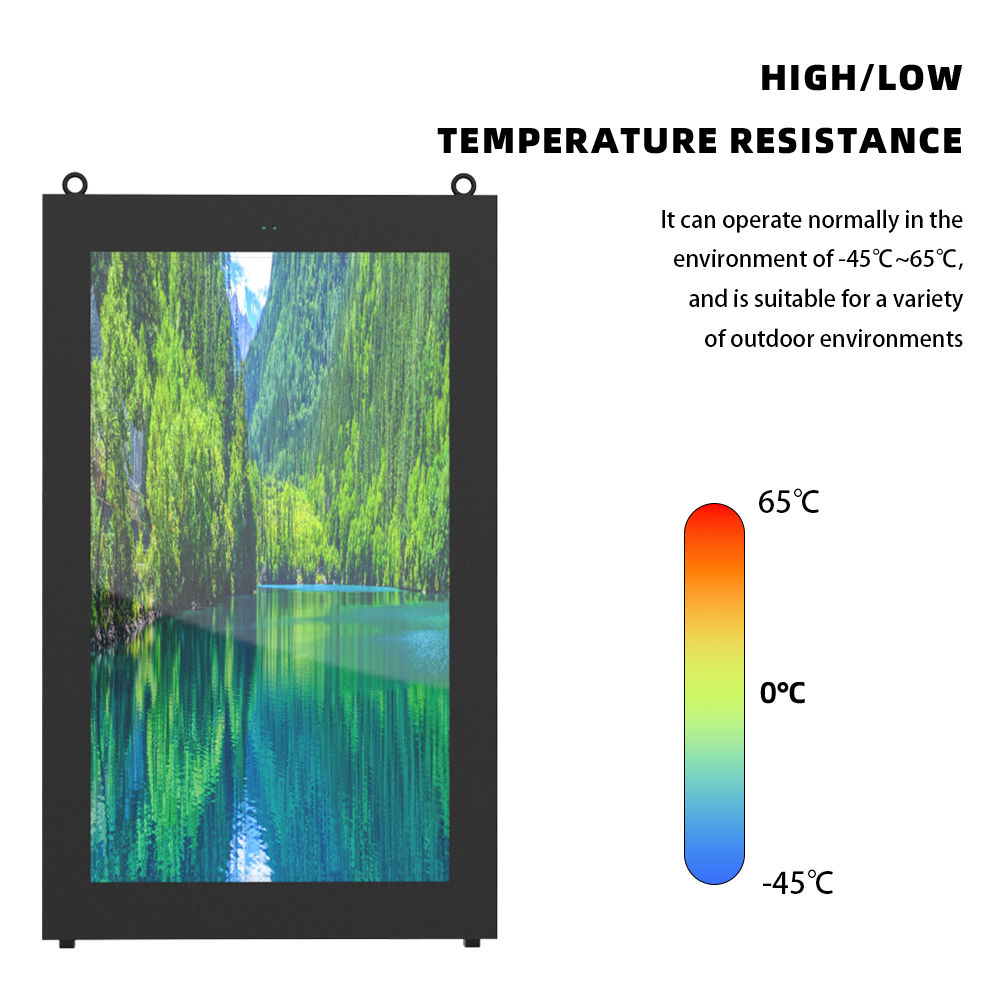

Operating temperature−45 °C – 65 °C
Storage temperature−50 °C – 70 °C
Operating humidity10%–80%

Refer to the selected model’s dimension drawing for the complete footprint and mounting details.

Download Documents

Outdoor Digital Signage Features

Outdoor wall mounted digital signage places advertising and information on the exterior of a building. It suits sites where a screen needs a fixed display position while keeping the floor area clear. A shop wall, mall entrance or residential information point can provide that position.

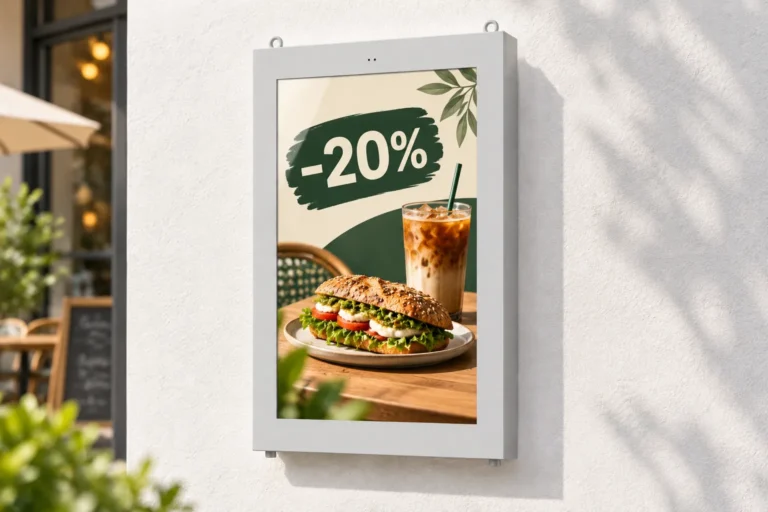

Illustration: A silver outdoor wall display promotes a sandwich-and-coffee offer beside a cafe terrace in daylight.

High-Brightness LCD Visibility in Daylight

The 3,000-nit LCD panel is intended for outdoor visibility. It gives images, prices and short information messages the brightness needed in daylight conditions. Anti-glare tempered glass helps reduce reflections while protecting the screen front.

An outdoor LCD screen may face changing light as the sun moves across the building. Brightness, glass treatment and screen direction all contribute to the view. The display’s location and the content layout determine what viewers can read from the approach route.

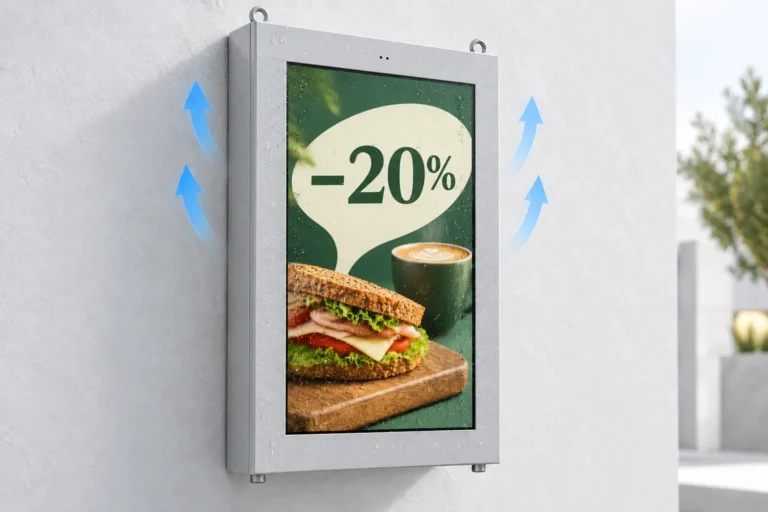

Illustration: An outdoor wall display shows a cafe offer, with rain droplets on the enclosure and schematic temperature-control arrows.

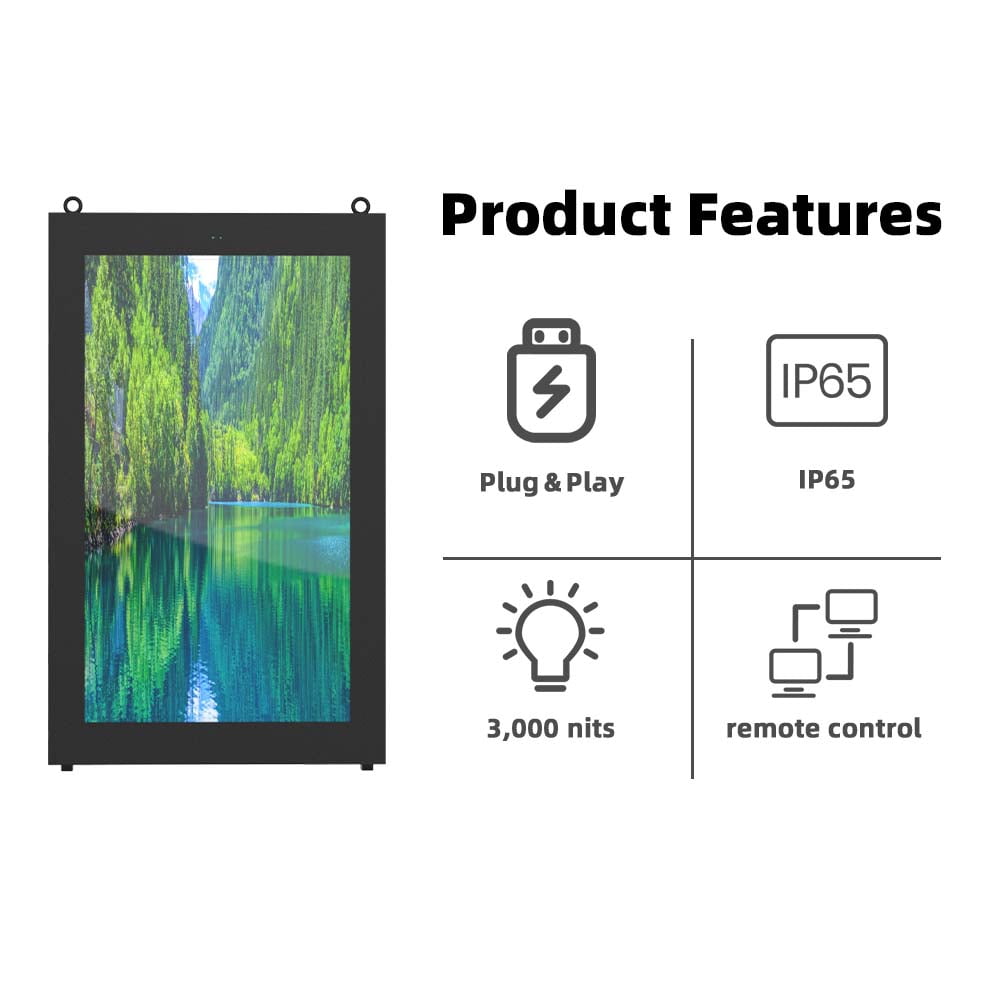

IP65 Protection Rating and Temperature Control

The display has an IP65 protection rating for resistance to dust and water ingress. A corrosion-resistant metal casing surrounds the display, while tempered glass forms the front surface. The structure includes rain and sun protection for its outdoor role.

Automatic temperature control and heat dissipation manage heat within the unit. These features are part of the outdoor display design, alongside the enclosure and the brightness of the panel.

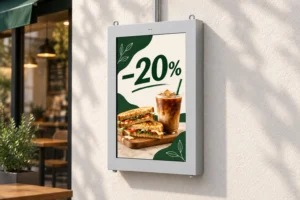

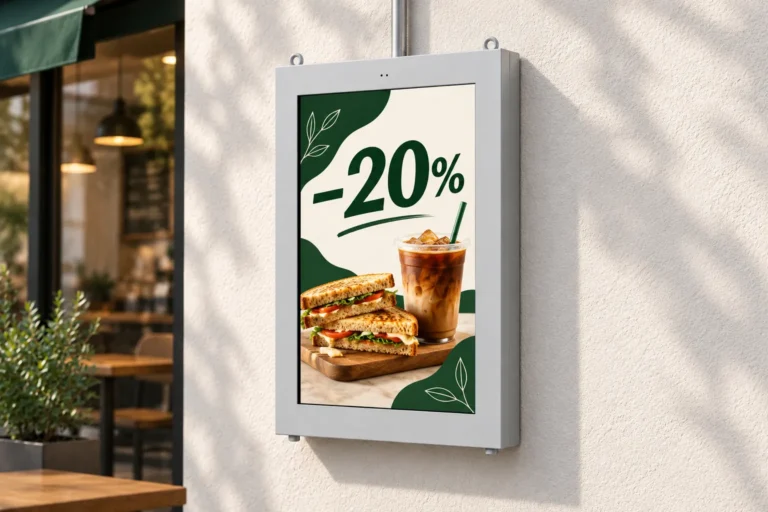

Illustration: An angled view of an outdoor wall display shows its enclosure depth while the screen advertises a cafe discount.

Reinforced Wall-Mount Bracket

A reinforced wall-mount bracket is supplied as standard. This gives the display a dedicated mounting arrangement for a suitable supporting wall. It is useful where an outdoor advertising display needs to stay in one position without a separate floor-standing enclosure.

The chosen screen size determines the unit dimensions and weight. The supporting wall, fixings and cable route are specified as part of the installation, using the drawing for that size.

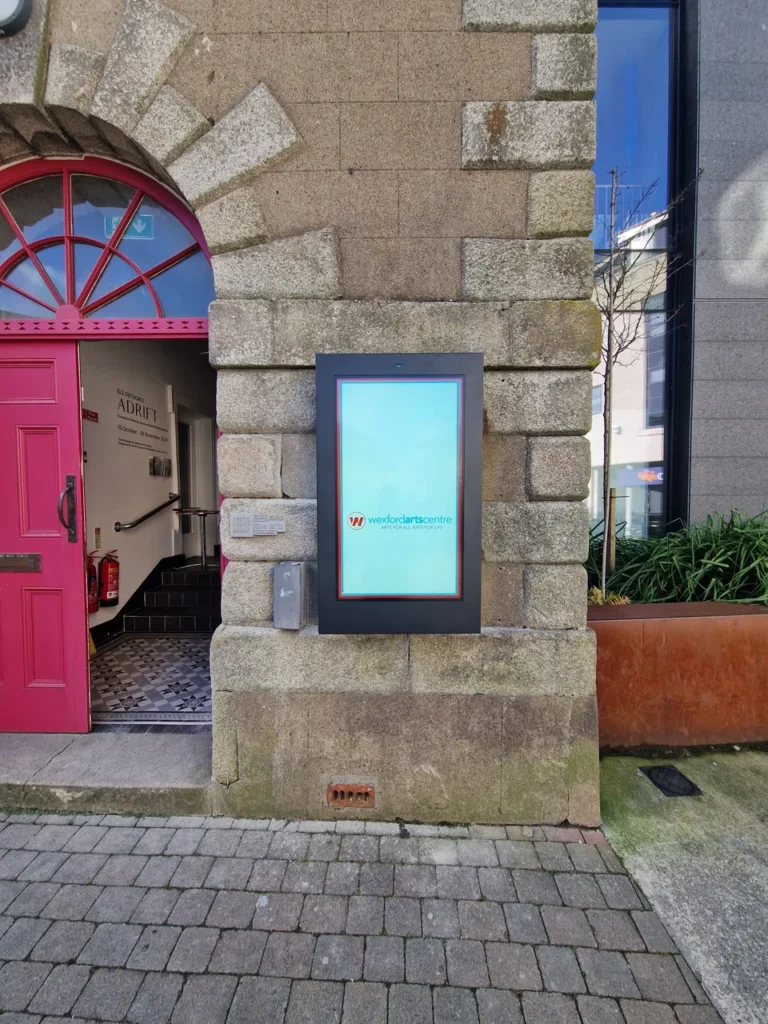

Portrait wall-mounted display on a stone wall beside a red entrance door, showing the arts centre’s branding.
Europe · Photographed in 2024

Wall-Mounted Digital Signage at a European Arts Centre

An arts centre in Europe uses YJCEN outdoor wall-mounted digital signage to display information about the centre and its events. The portrait screen is mounted on the stone wall beside the entrance, showing the centre’s identity and promotional content to arriving visitors.

View all projects: Outdoor Wall-Mounted Displays

Outdoor Wall Displays for Advertising and Information

Commercial streets and mall exteriors can use the screen for offers, tenant information and event promotions. At a residential entrance, it can display notices and service information. Transport and public areas can use it for directions and announcements.

Use a suitable player and application to show prepared media or live information from your chosen data source.

Choosing the Screen Size and Wall Position

Choose 32–98-inch landscape or 32–86-inch portrait displays with IP65 protection and 3000-nit brightness. The reinforced wall-mount bracket is included; match wall fixings and service access to the selected model.

For a display with its own floor-standing enclosure, compare our outdoor digital totem. Our outdoor LCD display range provides another enclosure specification for outdoor advertising and information.

Manuals and Drawings

Select your screen size and configuration to find the right documents.

55″ · LandscapeYJC-550-OD-W

Product Manual

Model specifications and configuration details.

Download PDF

Dimension Drawing

Drawing for the selected size and configuration.

Download PDF

Installation Manual

Series installation guide. See the model drawing for dimensions and mounting details.

Download PDF
Browse all product documents

OEM, certification and warranty

YJCEN offers enclosure, colour and private-label customization for integrators and brand owners. Android or Windows configurations, memory and storage can be customized; RK3568 and RK3576 are Android processor options. Your application can be pre-installed and tested on the selected hardware.

Android configurations include a free cloud-based CMS with no limit on the number of accounts.

Samples are available from 1 unit. Standard models typically ship in 3–7 working days and customized units in 15–20 working days. Sample lead time varies by product; the quotation specifies the delivery schedule.

YJCEN's quality management system is ISO 9001 certified. CB certification covers our product range; CE, RoHS, FCC and ETL documentation is available for applicable models.

YJCEN products have a 3-year warranty, excluding user-caused damage and faults caused by improper screen installation.

OEM/ODM options · CB certificate · Warranty terms

Outdoor Wall-Mounted Display FAQs

Is the wall-mount bracket included?

Yes. A reinforced wall-mount bracket is supplied. The final fixing arrangement depends on the selected screen and the wall structure.

Will direct reflections affect the screen?

They can. The 3,000-nit panel and anti-glare glass help with outdoor viewing, but the screen direction and surrounding reflective surfaces also matter. Assess the proposed position in daylight. For the full outdoor display selection process, see How to Choose an Outdoor Digital Signage Display.

Are enclosure dimensions the same for all sizes?

No. Dimensions and weight vary across the 32–98-inch range. Use the drawing for the exact screen size when planning wall space, fixing positions and access around the unit.

Can it show real-time information?

It can display connected content when a suitable player, application and data source are provided. Connect the display to your chosen information service through the player and application.

Is there a floor-standing version?

Our outdoor digital totem range provides a floor-standing format. It is intended for a fixed outdoor position with its own enclosure and installation arrangement. For the choice between wall mounting and a freestanding cabinet, compare Outdoor Digital Signage: Wall vs Floor-Standing Totem.

Discuss Your Project

Send the preferred screen size, quantity and exterior wall details for a display quotation. Contact YJCEN. To put these choices into a comparable quotation, use Outdoor LCD Display Buying Checklist: RFQ & Technical Specs.
